Product Information
Please note: This frame can only be used with new Crosswater flush plates with codes starting MPROFLUSH, MPROSPLATE or VENFLUSH. Old Crosswater flush plates not compatible

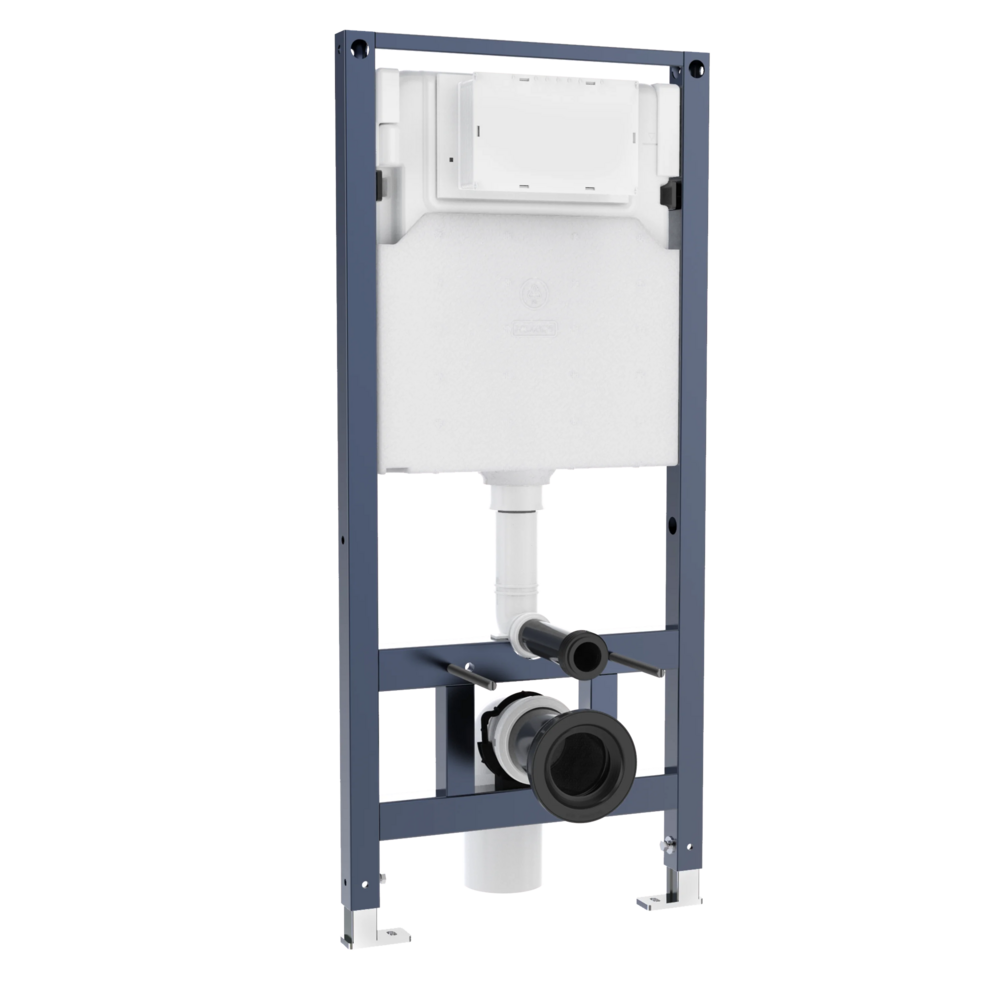

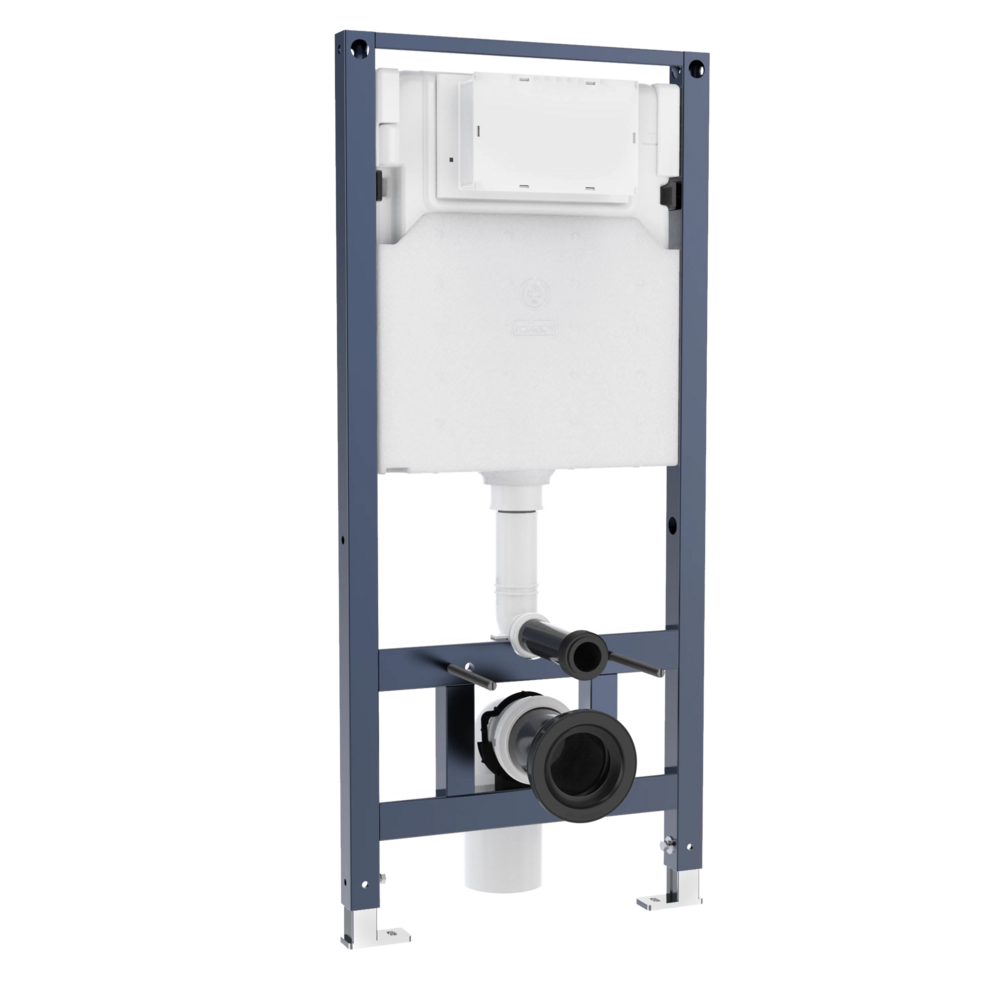

Add functionality to your new toilet with the Crosswater 1.12m wall hung WC support frame, a strong and durable choice for your bathroom installation.
Manufactured from powder coated steel, this robust support frame has been designed to be installed into your bathroom wall to support the weight of your wall hung toilet. The concealed cistern allows for a smooth operation with its dual flush technology, providing both 3 and 6 litre flush capabilities when installed with a flush plate, we only recommend using the Crosswater flush plates for the best fit and performance.
Please note - Required Crosswater flush plates are sold separately.
Additional Information:
- Includes water saving dual flush cistern.
- Epoxy powder coated steel frame, tested to take up to 400kg weight.
- For wall hung toilets with connection dimensions in accordance with EN 33.2011
- Large feet for easy rear fixing (specially designed for UK timber floor)
- Supplied complete with all fittings for installation.
- Easy install wall brackets for vertical or horizontal fixing
- Adjustable feet with rubber sound deadening pads
- Full UK specification to EN 14055 Class 2
- Easy install wall brackets for vertical or horizontal fixing
- Compatible with Crosswater flush plates - Sold separately - please see required products for one design option
- Front flush only
- Maximum supply pressure 6 bar
Size may vary depending on options selected
