Product Information
Please note: This frame can only be used with new Crosswater flush plates with codes starting MPROFLUSH, MPROSPLATE or VENFLUSH. Old Crosswater flush plates not compatible

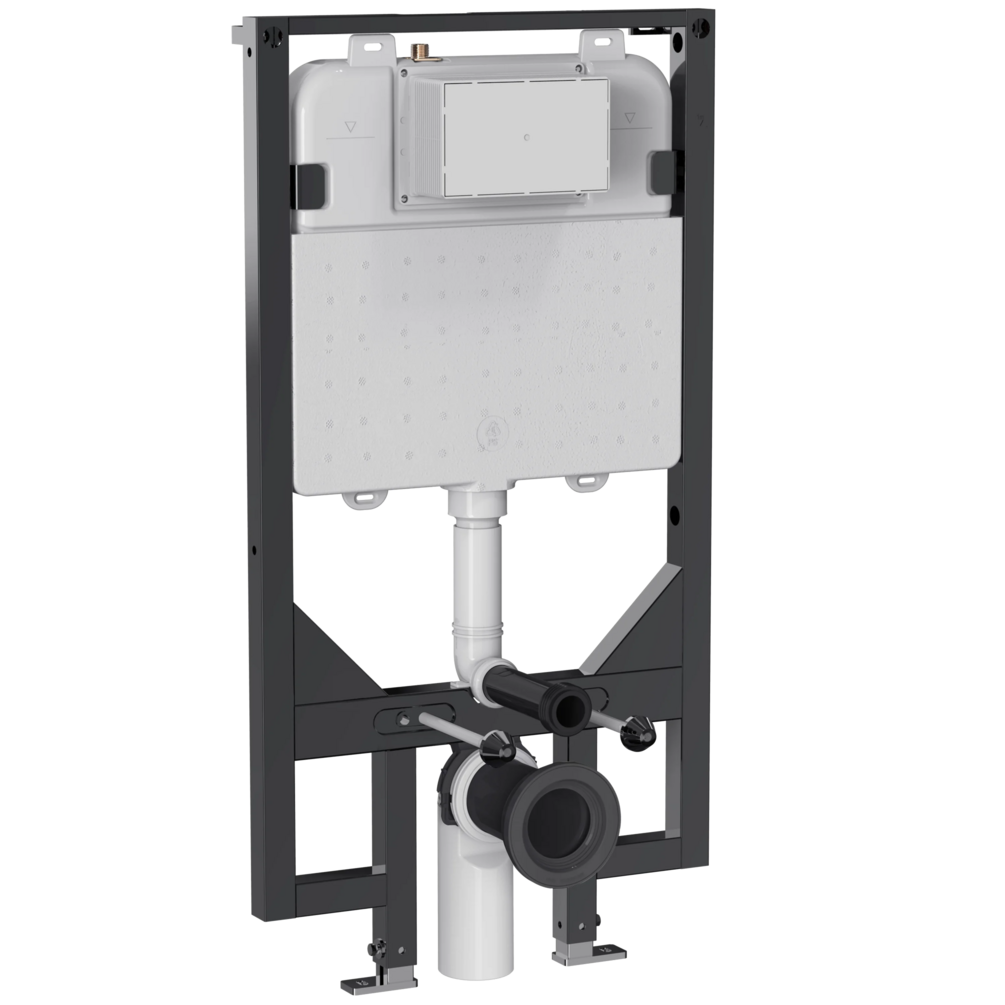

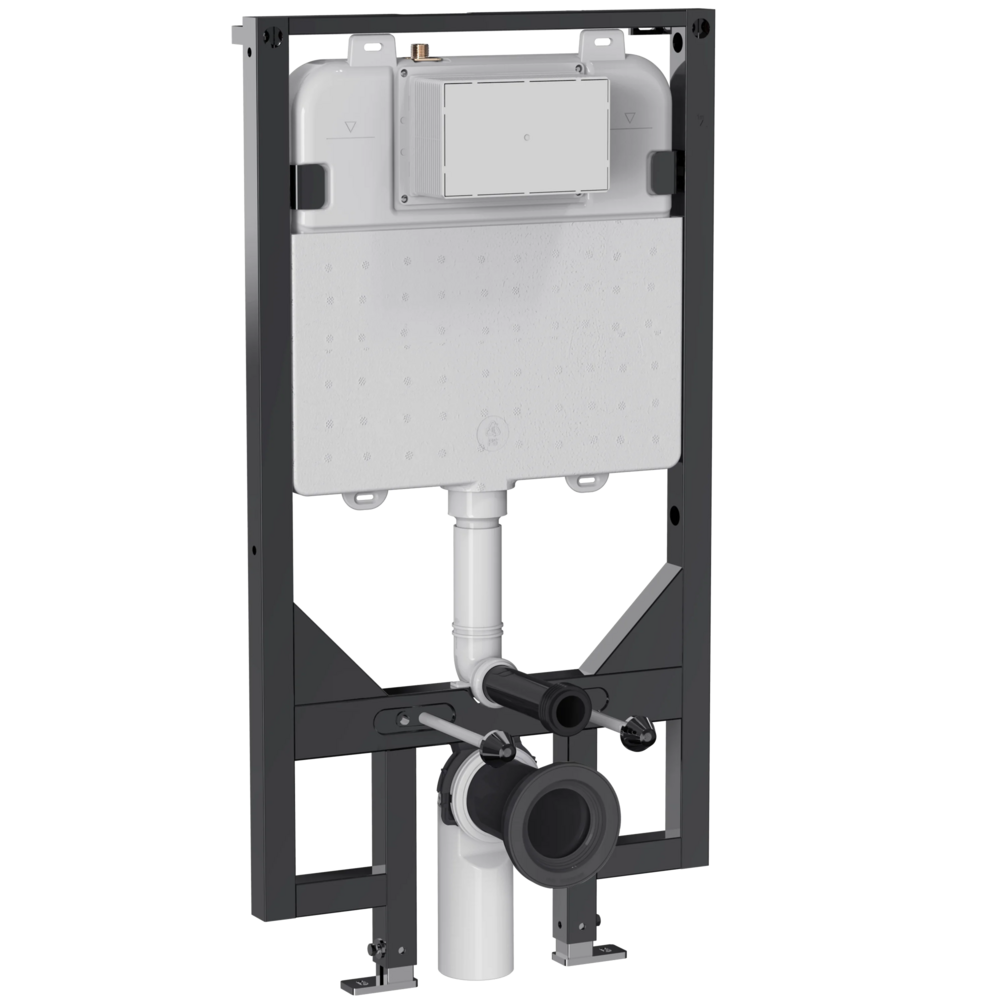

Bring functionality into your bathroom with the Crosswater 1.14m slim wall hung WC support frame, the perfect choice for installing your wall hung toilet.
Manufactured from powder coated steel, this robust support frame has been designed to provide the in-wall structure to support the weight of a wall hung toilet (up to 400kg), the slimline design makes it the perfect choice for small cavity spaces. The included concealed cistern features dual flush technology for saving water, providing you with both 3 and 6 litre flush capabilities. We only recommend using the Crosswater flush plates for the best fit and performance.
Additional Information:
- Includes water saving dual flush cistern.
- Epoxy powder coated steel frame, tested to take up to 400kg weight.
- For wall hung toilets with connection dimensions in accordance with EN 33.2011
- Large feet for easy rear fixing (specially designed for UK timber floor)
- Supplied complete with all fittings for installation.
- Easy install wall brackets for vertical or horizontal fixing
- Adjustable feet with rubber sound deadening pads
- Full UK specification to EN 14055 Class 2
- Easy install wall brackets for vertical or horizontal fixing
- Compatible with Crosswater flush plates only - Sold separately - see required products for one design option
- Front flush only
- Maximum supply pressure 6 bar
Size may vary depending on options selected
