Product Information
Please note: This frame can only be used with new Crosswater flush plates with codes starting MPROFLUSH, MPROSPLATE or VENFLUSH. Old Crosswater flush plates not compatible

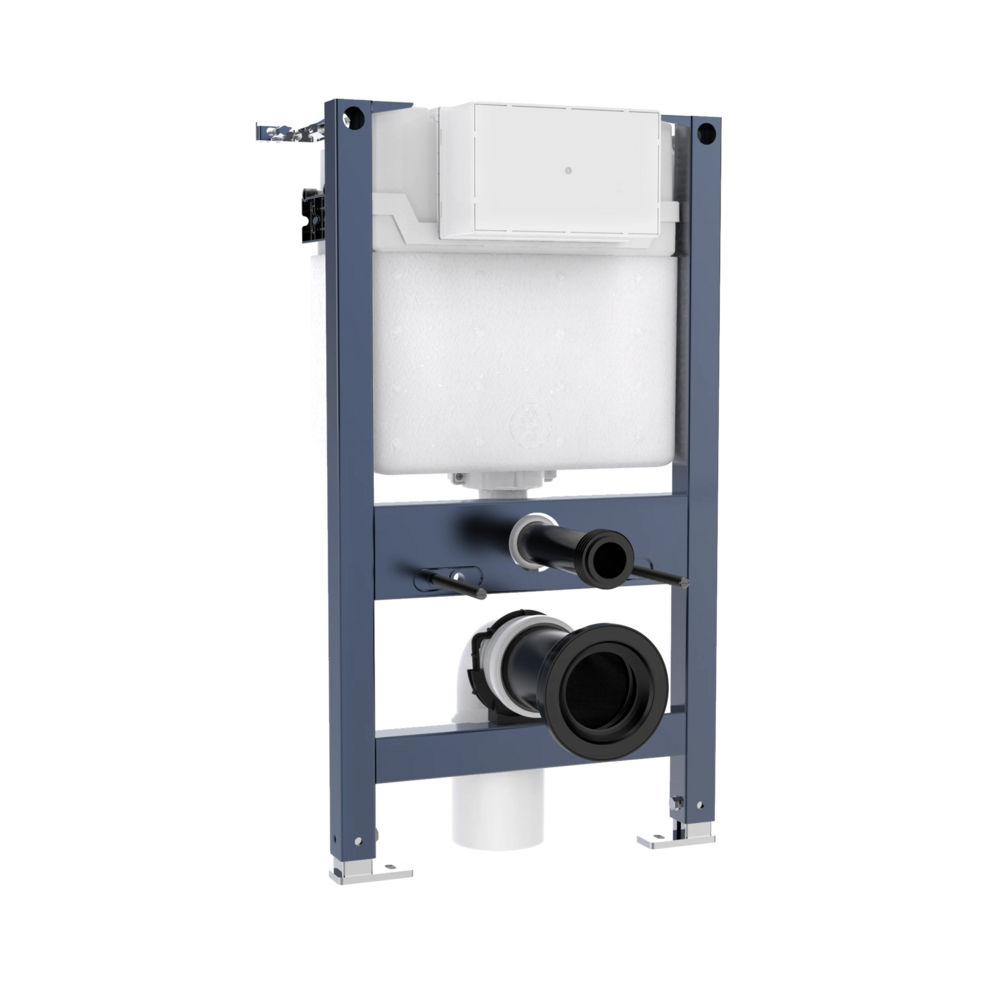

The practical 820mm wall hung WC support frame from Crosswater makes a fantastic choice for the installation of your wall hung toilet.
Installation is made easy, simply installed into your bathroom wall, this frame supports the weight of your new toilet, providing the stability and durability needed for a smooth operation. The cistern features a dual flush mechanism with water-saving technology, providing both 3 and 6 litre flush capabilities when installed with a flush plate, we only recommend using the Crosswater flush plates for the best performance.
Please note - Required flush plate is sold separately.
Additional Information:
- Includes water saving dual flush cistern.
- Epoxy powder coated steel frame, tested to take up to 400kg weight.
- For wall hung toilets with connection dimensions in accordance with EN 33.2011
- Large feet for easy rear fixing (specially designed for UK timber floor)
- Supplied complete with all fittings for installation.
- Easy install wall brackets for vertical or horizontal fixing
- Adjustable feet with rubber sound deadening pads
- Full UK specification to EN 14055 Class 2
- Easy install wall brackets for vertical or horizontal fixing
- Compatible with Crosswater flush plates - Sold separately - see required products for one design option
- Top & front flush
- Maximum supply pressure 6 bar
Size may vary depending on options selected
