VitrA V-Fix Prime 1.12m Slim Wall Hung Concealed Cistern & Frame

Concealed neatly within your bathroom wall, the VitrA V-Fix Prime 1.12m Slim Wall-Hung Concealed Cistern & Frame provides a durable, long-lasting solution for installing a wall-hung toilet.

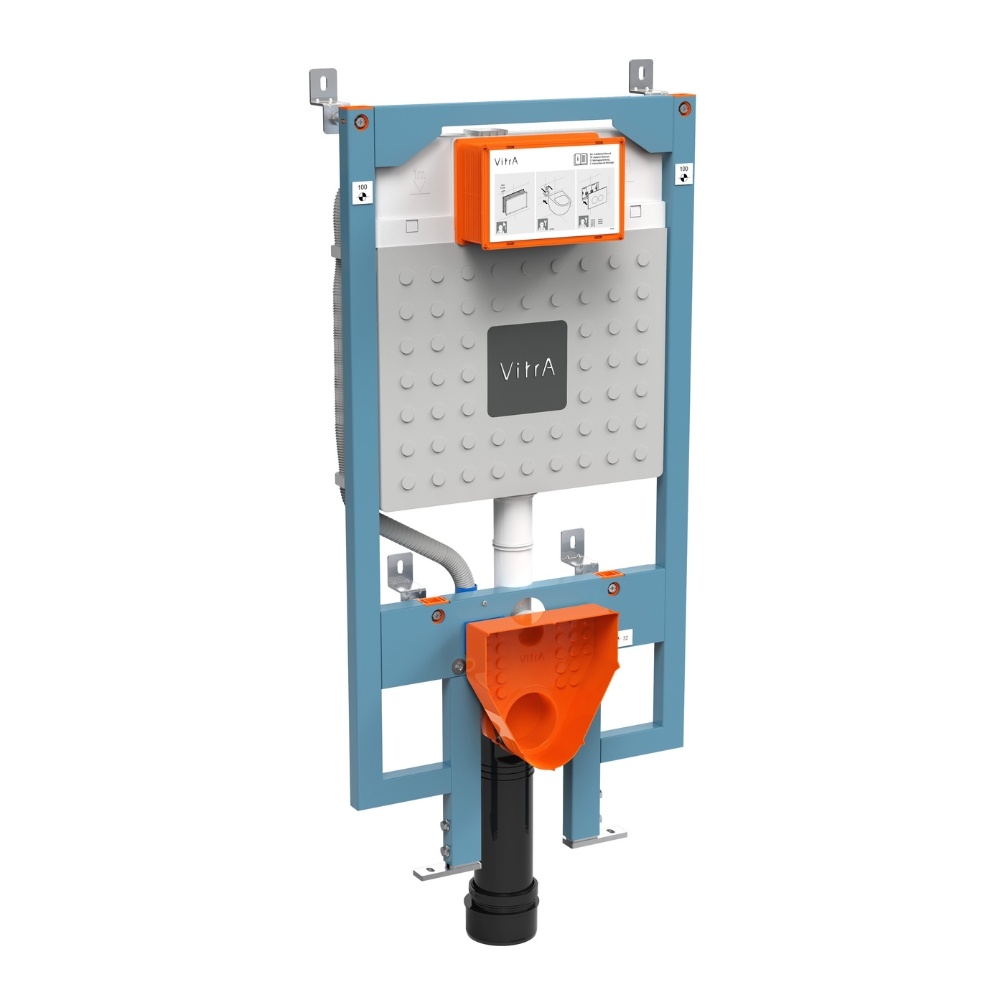

The rectangular, powder-coated frame is fixed to the wall with brackets and also features spring-mounted fittings at its base, allowing the height to be adjusted for correct installation. The slimmer frame can support up to 400 kg in weight and holds the accompanying dual flush concealed cistern securely in place, while able to fit more easily into narrower wall spaces.

The adjustable cistern has a default setting of 3/6 litres, which includes a front connector at the top for a dual toilet flush plate (sold separately) to be easily installed and accessed for maintenance when required. It has been rigorously tested to withstand approximately 200,000 flushes, equivalent to around 90 years of use. The universal pipe at the base connects directly to the back of your toilet pan, while an adjustable clamp at the bottom of the frame securely holds components, such as the waste pipe in place.

Thanks to its concealed design, the wall-hung toilet frame and cistern can be fitted discreetly, leaving only the toilet pan and flush plate visible, for a streamlined, minimalist look in your bathroom.

Summary of Features:

• Easy installation.
• Adjustable dual flush cistern.
• Tested to be used for approx. 200,000 flushes.
• Frame holds up to 400Kg in weight
• Adjustable floor mounted height
• Adjustable clamp to secure waste pipe and other components.
• Flexible water connection.
• Universal shower & toilet connection.
• Frost resistant.

Please Note:

• This product is suitable for Drywall installation only
• This concealed cistern and frame is only compatible with VitrA flush plates and VitrA wall hung toilets only (see required products.)
