Product Information

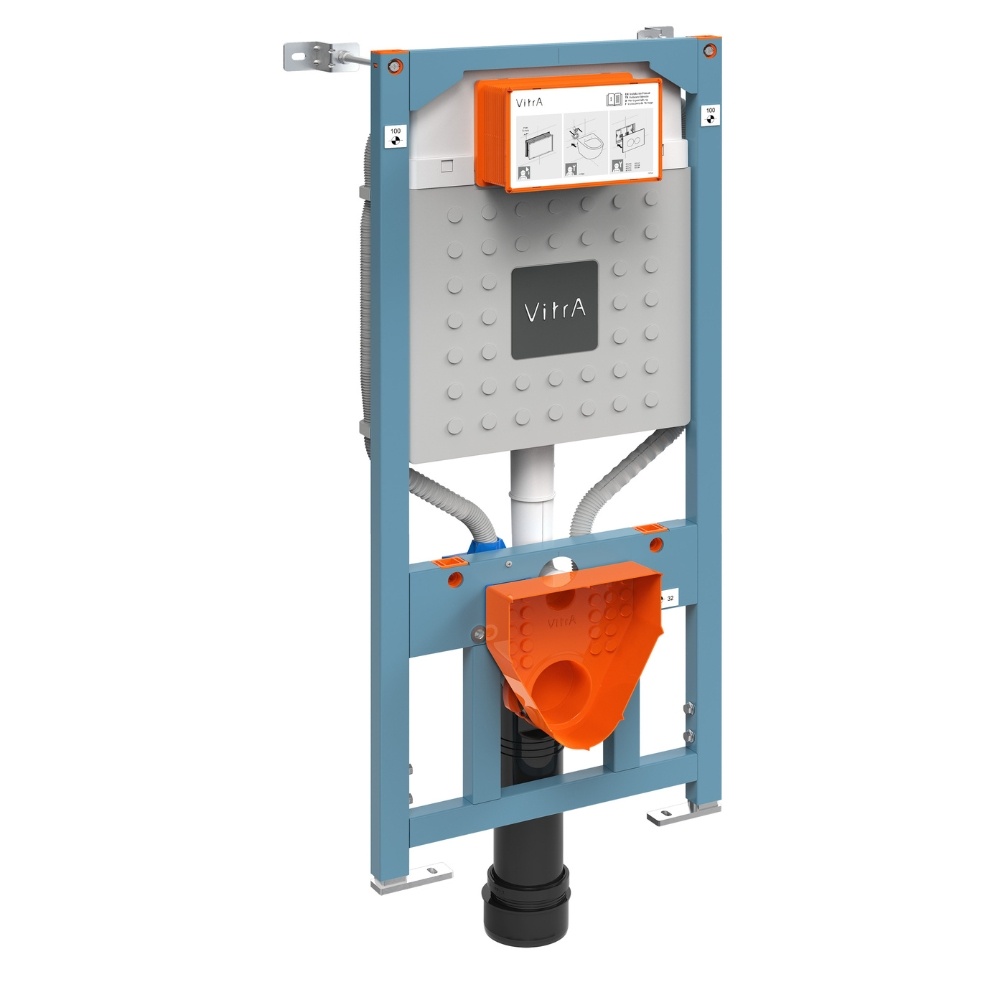

The VitrA V-Fix Prime 1.12m Slim Wall-Hung Concealed Cistern & Frame provides an outstanding solution for installing a wall-hung toilet.
Concealed within a rectangular, powder-coated frame, the adjustable 3/6-litre dual-flush concealed cistern features a front connector for the straightforward installation of a dual toilet flush plate (sold separately), which can also be conveniently accessed for maintenance. The cistern has been tested to withstand approximately 200,000 flushes, which is equivalent to around 90 years of use. A universal pipe at the base of the cistern connects directly to the back of the wall-hung toilet pan, completing your W.C set-up.
The powder-coated rectangular frame can support up to 400 kg. It is mounted to the wall using clamps, while its height can be adjusted with spring-mounted fittings at the base to ensure the correct positioning. An adjustable clamp at the bottom of the frame securely holds components, such as the waste pipe, in place.
The concealed design of this wall-hung toilet frame and cistern makes it an excellent choice for those who prefer a streamlined, minimalist bathroom with no exposed plumbing.
Summary of Features:
- Easy installation.
- Adjustable dual flush cistern.
- Tested to be used for approx. 200,000 flushes.
- Frame holds up to 400Kg in weight
- Adjustable floor mounted height
- Adjustable clamp to secure waste pipe and other components.
- Flexible water connection.
- Universal shower & toilet connection.
- Frost resistant.
Please Note:
- This product is suitable for Drywall installation only
- This concealed cistern and frame is only compatible with VitrA flush plates and VitrA wall hung toilets only (see required products.)
Size may vary depending on options selected
