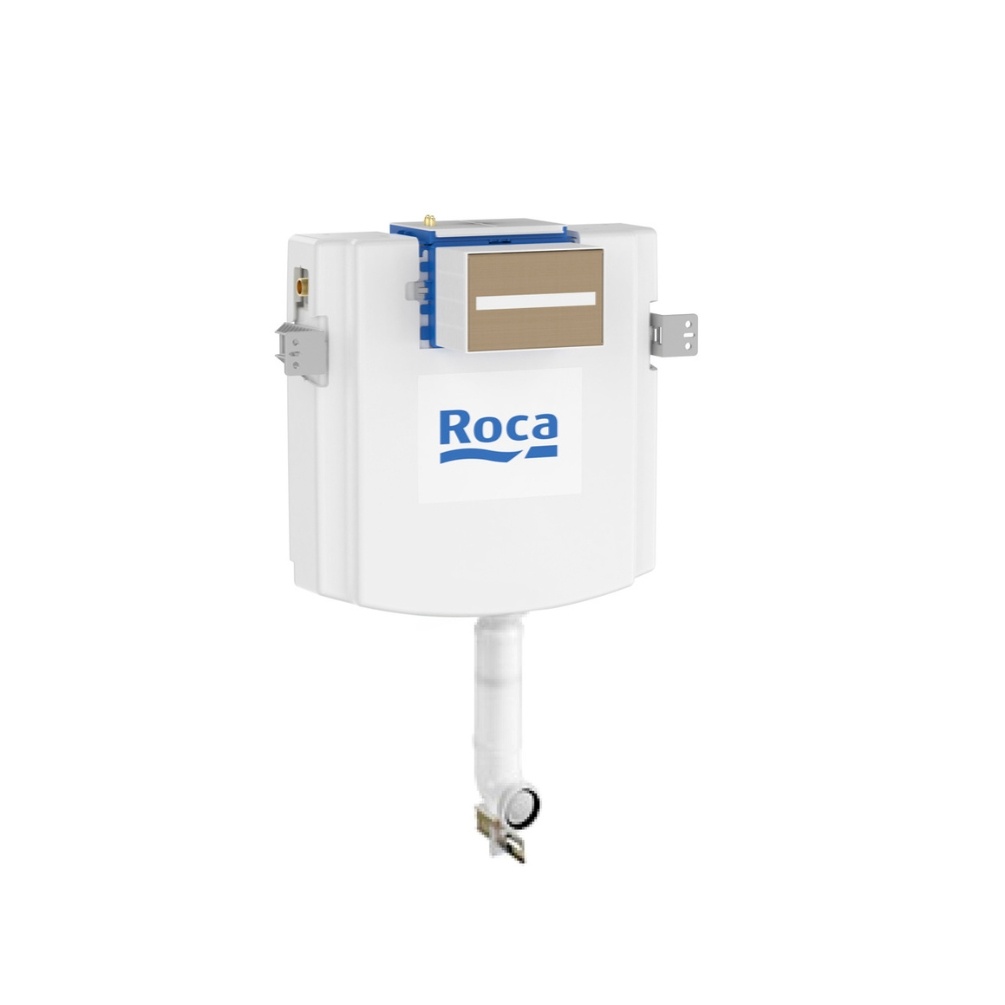

Roca Duplo S Back to Wall Adjustable Concealed Dual Flush Cistern

The Roca Duplo S Back to Wall Adjustable Concealed Dual Flush Cistern offers a streamlined solution for installing a back-to-wall toilet in space-restricted areas.

This state-of-the-art back to wall cistern features innovative dual flush technology, providing a flush capacity of 6/3L to actively promote water conservation, along with a reduced actuation force needed for flushing due to its two-cable operation. Measuring 528mm in width and 695mm in height, this cistern features an adjustable 70mm inlet pipe, allowing for adaptable installation in various spaces, including beneath windows - a convenient, modern location for a concealed toilet installation.

Engineered for longevity and an exceptional user experience, this cistern includes insulation against condensation to avoid moisture buildup, operates at ultra-quiet levels under 20 dBA, and can withstand weights of up to 400kg, making it suitable for both solid and drywall installations.

This product is supplied with all the essential components needed for professional installation, which include a WC Connection Set, a comprehensive instruction manual, and a tiling set that contains protection caps and cubes for a perfect finish.

Please Note: Compatible with Duplo S PS1, PS2, PS3, PS4 and PS5 Flush Plates. See the required products section for a brief sample of available colours.

Please Note: There is a lead time of 14-21 working days for this product.

• Dynamic pressure range: 0.1 to 10 bar.
• Water inlet position: Back, lateral.
• DN90 (90mm) elbow connection.
• Minimum fixation depth: 140mm
• 1/2” water supply.
