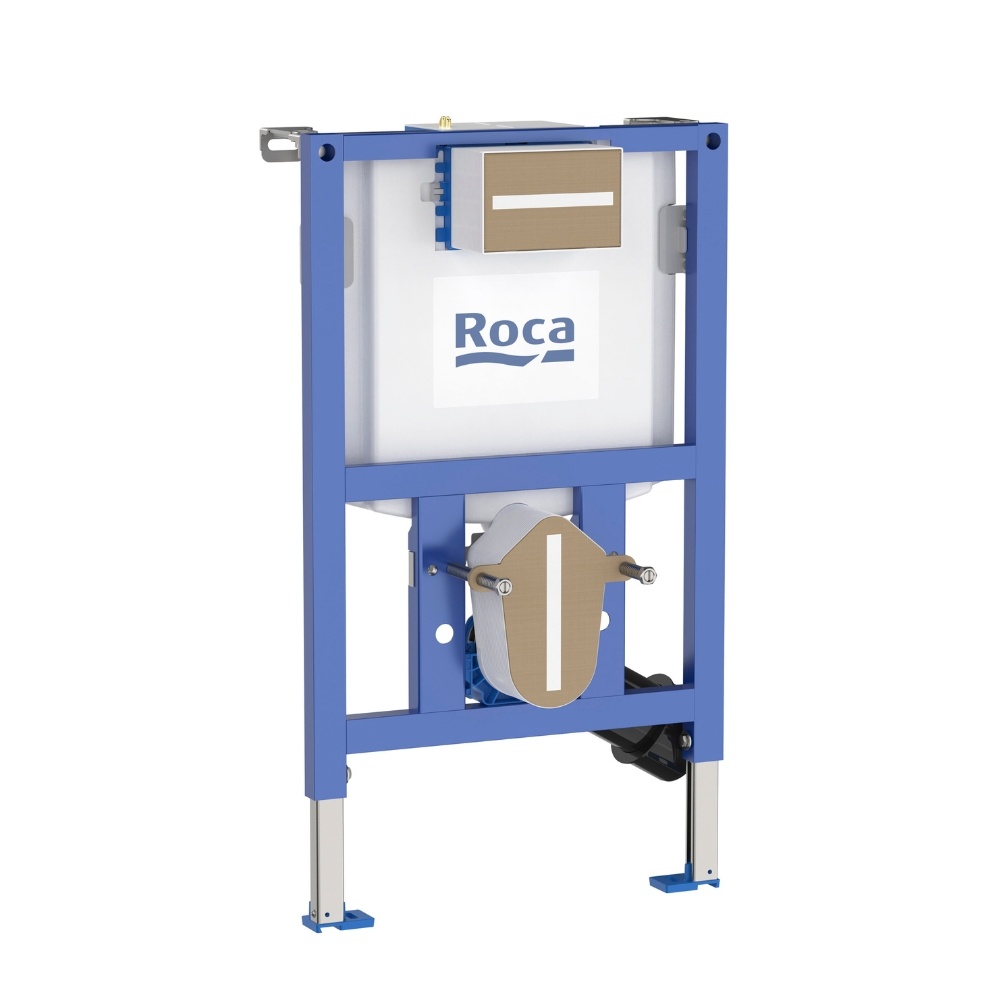

Roca Duplo S Low Height 820mm Wall Hung WC Frame with Dual Flush Cistern

The Roca Duplo S Low Height 820mm Wall Hung WC Frame with Dual Flush Cistern is a premium solution for the effective installation of wall hung toilets in height-restricted areas.

This versatile wall-hung toilet frame & cistern delivers exceptional performance while maximising space efficiency in tight installations. Measuring 820mm in height, this model features height-adjustable galvanised leg support that extends 0-200mm with an integrated brake system and 135-205mm wall bracket, both of which ensure precise alignment, ideal for under-window installation. Built to withstand daily demands and suitable for solid or stud wall installations, this robust frame supports loads up to 400kg, ensuring long-lasting reliability.

The incorporated intelligent dual flush cistern offers adjustable flush volumes for optimal water conservation, with a max flush setting of 6/3L and a low flush setting of 4.5/3L to suit different usage requirements. This innovative water-saving technology reduces environmental impact while maintaining powerful flushing performance that delivers whisper-quiet operation below 20dB and is insulated against condensation.

Please Note: Compatible with Duplo S PS1, PS2, PS3, PS4 and PS5 Flush Plates. See the required products section for a brief sample of available colours.

• Dynamic pressure range: 0.1 to 10 bar.
• Designed for wall-mounted pans with an axial distance of 180mm and 230mm.
• Features two cable-operated flushing options.
• Water inlet position: Back, lateral.
• 90-110mm waste adaptor for floor exit, 90mm horizontal waste included.
• Outlet pipe can be adjusted to rotate up to 80 degrees.
• DN90 (90mm) elbow connection.
• Minimum fixation depth: 155mm
• 1/2” water supply.
