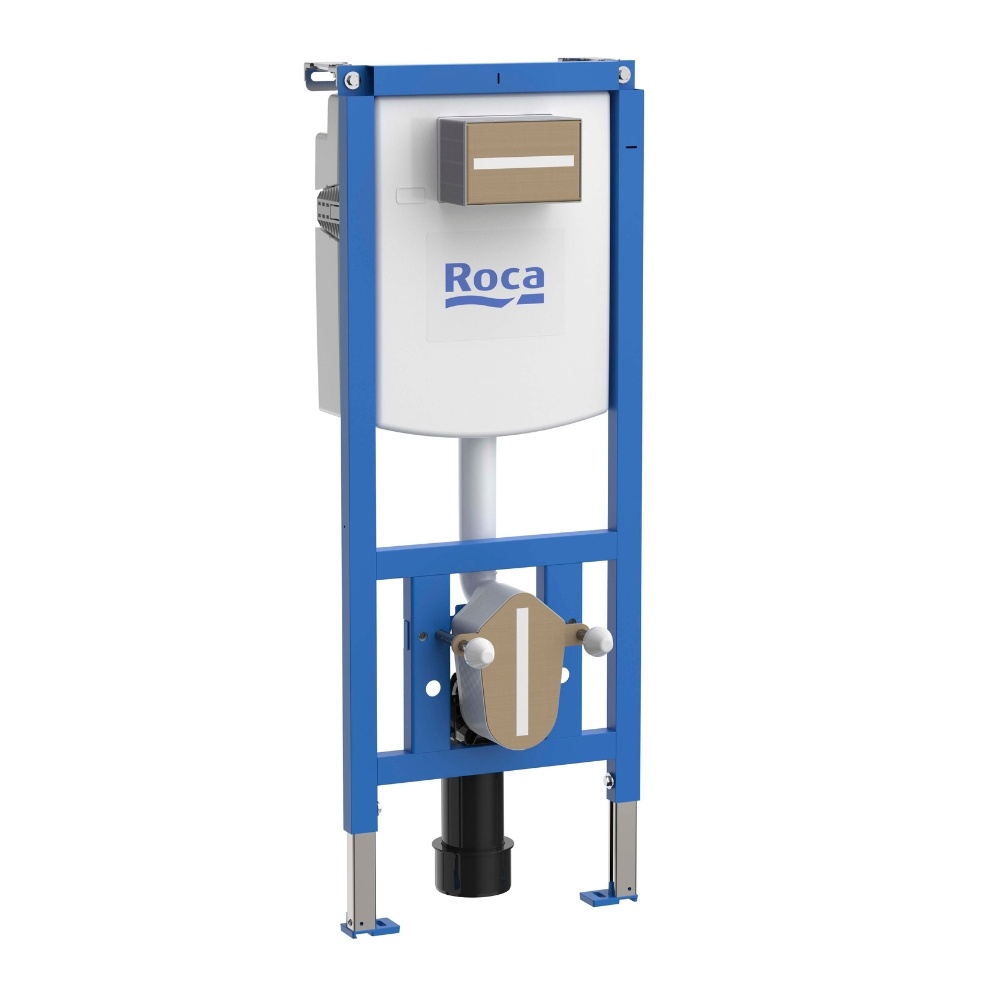

Roca Duplo S Standard Height 1120mm Wall Hung WC Frame with Dual Flush Cistern

The Roca Duplo S Standard Height 1120mm Wall Hung WC Frame with Dual Flush Cistern is an excellent choice for effectively installing wall hung toilets.

With a set height of 1120mm, this wall-hung toilet frame & cistern offers flexibility of installation with height-adjustable galvanised leg support that can extend from 0-200mm, along with an integrated brake system and wall bracket adjustable from 135-205mm, ensuring accurate alignment in all locations. Designed to handle daily use and applicable for both solid and stud wall setups, this sturdy frame can support loads up to 400kg, providing lasting reliability.

The smart dual flush cistern built into the frame allows for adjustable flush volumes for efficient water use, featuring a maximum flush capacity of 6/3L and a lower flush capacity of 4/2L to meet various demands. This cutting-edge water-saving technology minimises environmental impact while delivering strong flushing action that operates quietly at below 20dB and is insulated to prevent condensation.

Please Note: Compatible with Duplo S PS1, PS2, PS3, PS4 and PS5 Flush Plates. See the required products section for a brief sample of available colours.

• Dynamic pressure range: 0.1 to 10 bar.
• Designed for wall-mounted pans with an axial distance of 180mm and 230mm.
• Features two cable-operated flushing options.
• Water inlet position: Back, lateral.
• 90-110mm waste adaptor for floor exit, 90mm horizontal waste included.
• Outlet pipe can be adjusted to rotate up to 80 degrees.
• DN90 (90mm) elbow connection.
• Minimum fixation depth: 155mm
• 1/2” water supply.
