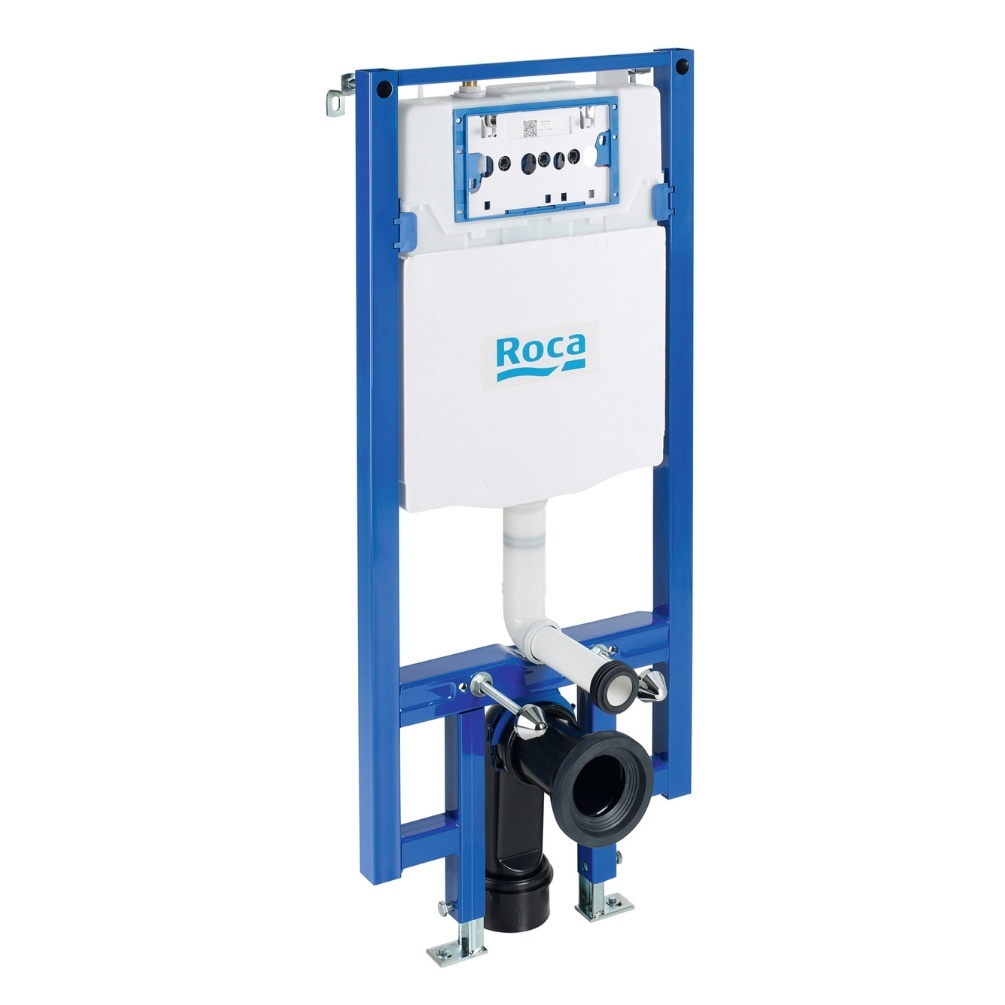

Roca Duplo One 1120mm Compact Wall Hung WC Frame with Dual Flush Cistern

For the installation of a wall hung toilet in space-restricted areas, choose the Roca Duplo One 1120mm Compact Wall Hung WC Frame with Dual Flush Cistern.

This adaptable wall-hung toilet frame & cistern combine innovative functionalities with a sleek and cost-effective design. The key feature is a dual flush cistern with an ultra-slim depth of only 80mm, making it suitable for installation in confined or challenging spaces like cloakrooms and en-suites. Moreover, it accommodates various wall heights or floor levels due to the adjustable feet height of up to 200mm and a braking mechanism, consistently ensuring a perfect fit.

On top of that, the dual flush cistern provides several flush volume choices: a standard 3/6 litres, which can be altered to either 4/2L or 4.5/3L, offering options for water conservation. Built from high-quality insulating materials, this cistern guarantees total protection against condensation.

Please Note: This system is compatible with Roca's Duplo One PL1, PL2, PL3, PL7, PL10, as well as the EP3 electronic toilet flush plates (sold separately). See the required products section for a brief sample of available colours.

Please Note: There is a lead time of 14-21 working days for this product.

• Minimum Fixation Depth: 90mm.
• 1/2” water supply.
• 90-110mm waste adaptor for floor exit included.
• WC fixing points of 180mm or 230mm
• Water Inlet Position: Top
• Horizontal waste included.
• Flow pressure ranges from 0.1 to 10 bar.
• DN100 (110 mm), DN90 (90 mm) elbow connection.
