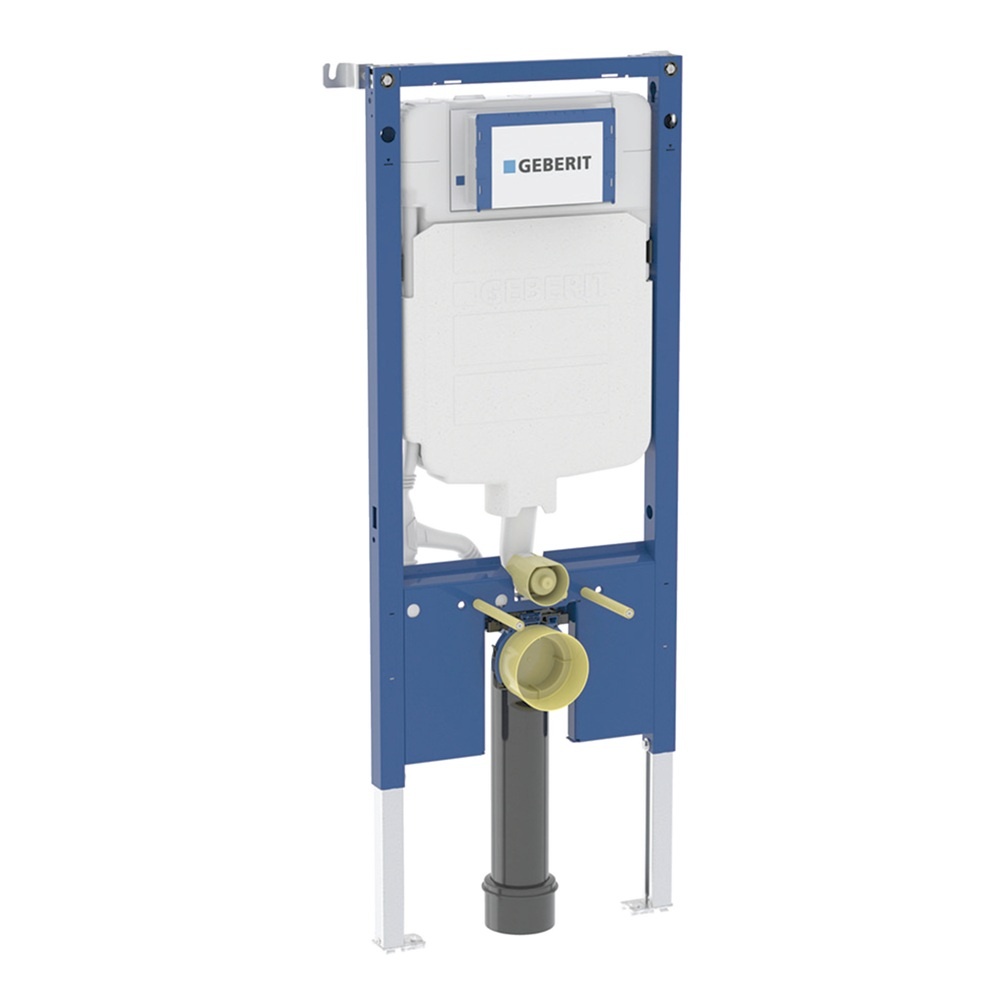

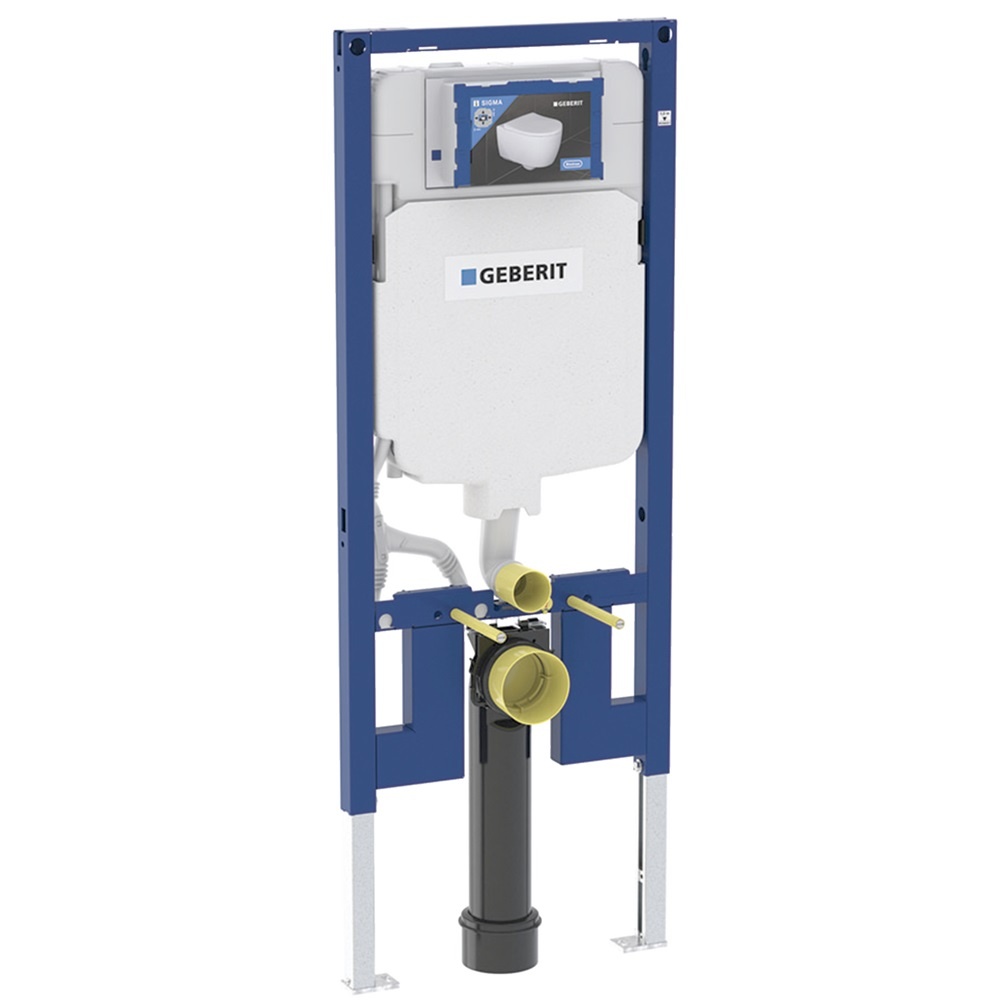

Geberit Duofix Reduced Depth Concealed WC Frame (114cm)

Reference: 02184
Code: 111.799.00.3
RRP £617.56
Save 30%
£432.29 INC VAT
Delivery in 3-7 days From £6.95 Information
Product Information

Designed as a durable, hassle-free installation option for wall-hung toilets, this concealed frame and cistern is a practical solution from Geberit. It fits inside your bathroom wall, leaving just your toilet pan and flush plate visible for a clean, minimalist look.


  • For installation of a wall hung WC with bolt fixings set at 180 or 230mm centres
  • For installation in part or room-height prewall installations
  • Duofix system wall in front of a solid or drywall construction
  • To be installed in a load bearing stud wall
  • Self supporting
  • M12 fastening for ceramic appliances, fastening distance 180mm or 230mm
  • Front actuation only
  • Concealed cistern fully insulated against condensation
  • Water supply connection at the top, offset to the left side
  • Adjustable flushing volume
  • Outlet bend depth with vertical connection of 9cm
  • Installation depth at least 80-110mm with vertical drainage connection
  • Suitable for wall hung toilets with a projection of 70cm
  • Only suitable for use with Sigma flush plates - see required products
Product Name
Geberit Duofix Reduced Depth Concealed WC Frame (114cm)
Product Code
Dimensions (W x H x D)
500mm x 1140mm x 80mm
Size may vary depending on options selected
Steel / Plastic
1 year
Flush Type
Dual Flush
Flush Button/Lever
Flush/Push Button
Flush Volume
Actuation Type
Front Actuation
Product FAQ's

For more information ask us your own question or visit the manufacturers website.

Ask a Question
