Product Information

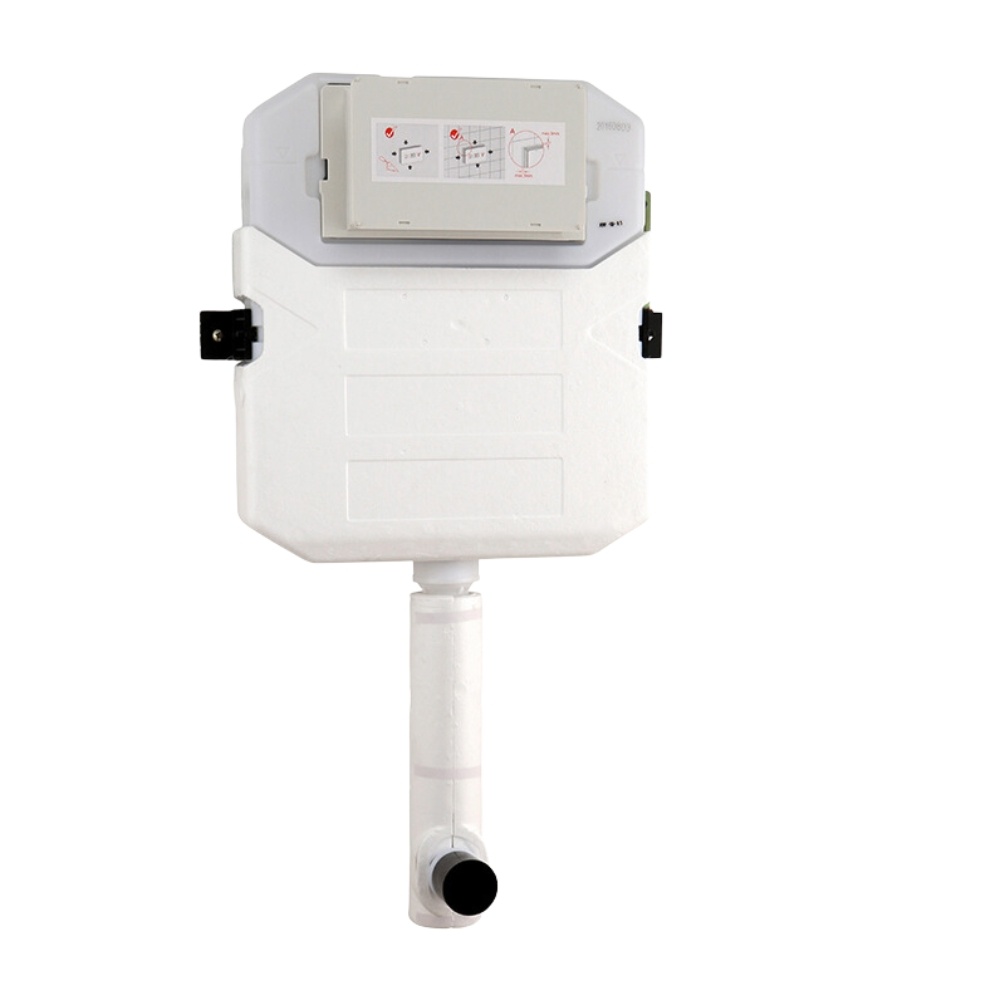

Compatible with our full range of Abacus flush plates, the Easi-Plan 1180mm Concealed Dual Flush Cistern is an innovative piece of sanitaryware that would elevate the function of our toilet space, while streamlining the look of your modern bathroom.

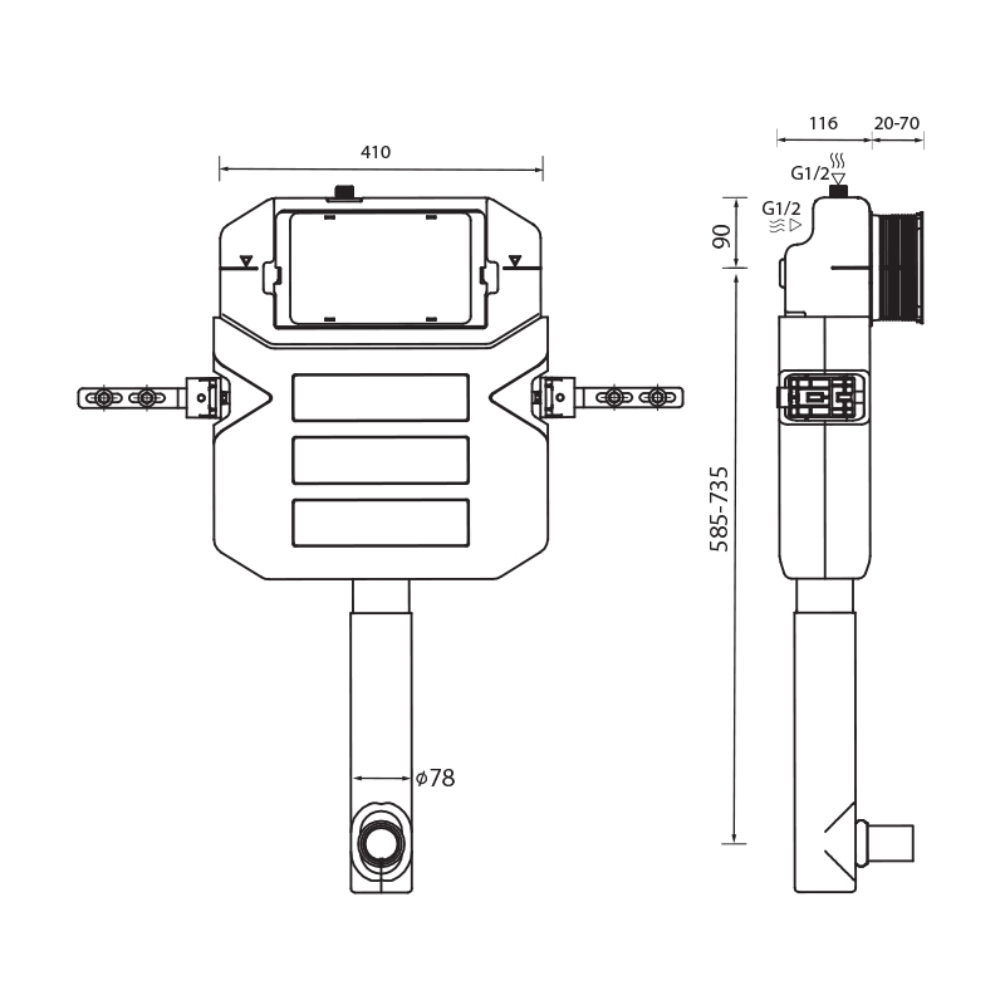

Measuring 410mm in width and 735mm in height, this dual flush concealed cistern features wall brackets on either side such that it can be securely installed on your bathroom wall, in addition to all the necessary pipework needed to pair it with any style of back to wall toilet. Unlike most conventional cisterns, the inner workings of which can only be accessed from the top, the dual flush syphon of this concealed cistern can be accessed from above or from the front depending on your preference or the demands of your space.
Once your installer has mounted the cistern, they can attach the corrugated tile guide to the top or front face of the fixture such that an access point is left available when the rest of the cistern has been covered with wall tiles. Behind the corrugated tile guide is the fascia plate, which grant direct access to the dual flush syphon and internal water stop upon being removed.
Adjusting the two red sliding tabs on the side of the dual flush syphon allow you to increase or decrease the flush volume, such that your cistern produces a substantial 6 litre or 3 litre flush, or a more conservative 4.5 litres or 2 litres. As its name would suggest, the internal water stop suspends the water supply to the cistern such that you can conduct maintenance on the toilet bowl or pipework. Meanwhile,
When are you satisfied with the settings of your cistern, you can cover the fascia plate with one of our wide variety of Abacus flush plates, available in numerous styles and coloured finishes that are sure to accentuate the aesthetic of your contemporary space.
Size may vary depending on options selected
