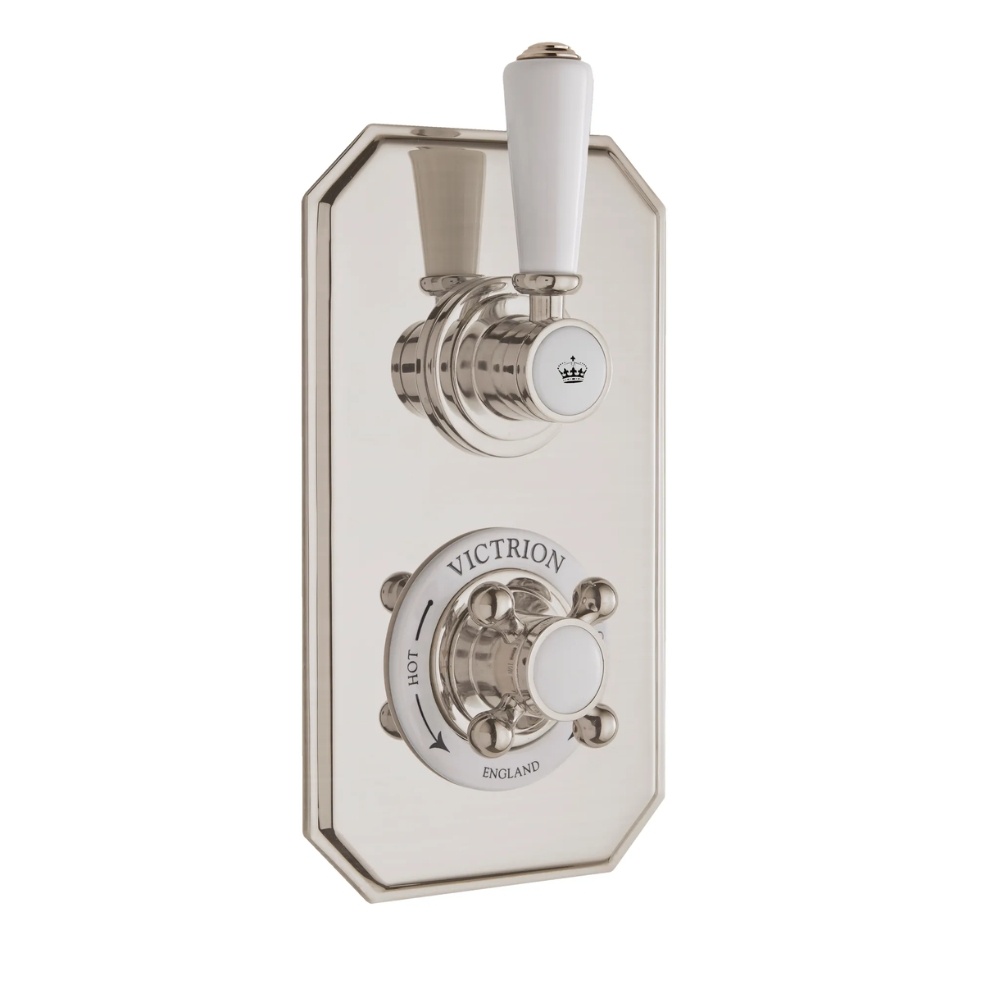

BC Designs Victrion 1 Outlet 2 Handle Brushed Nickel Concealed Thermostatic Shower Valve

Reference: 54192
Code: CSA020BN
Select an option: Brushed Nickel
RRP £705.00
Save 30%
£493.50 INC VAT
Pay 3 interest-free payments of £164.50 with Klarna. Learn more.
Delivery in 21-28 Working Days From £6.95 Information
Product Information

Displaying classic sophistication, the BC Designs Victrion 1 Outlet 2 Handle Brushed Nickel Concealed Shower Valve regulates the water to your connected shower outlet.

The trimset features an octagonal faceplate made from brass with ABS enhancement for superior durability,  finished in brushed nickel. The elegantly crafted traditional-style lever handle regulates the flow, whilst the ornate crosshead handle controls temperature settings.

This unit complements various outlet configurations perfectly, including fixed shower heads, or a shower handset and hose kit(sold separately - see required products.)

  The integrated thermostatic valve maintains a pleasant water temperature, eliminating risks of scalding or sudden temperature drops.

This single-outlet concealed shower valve mounts to the wall, with its mechanism discreetly concealed behind the wall, providing a clean and uncluttered aesthetic. The valve performs reliably at water pressures as low as 0.1 bar.


Please Note:

  • This thermostatic shower valve contains a patented cartridge which is fully reversible, meaning if the hot and cold supplies are the wrong way round then it can be removed, turned 180° and fitted, without re-plumbing.
  • In the event of hot or cold water failure, the valve will shut down the water supply.
Product Name
BC Designs Victrion 1 Outlet 2 Handle Brushed Nickel Concealed Thermostatic Shower Valve
Reference
54192
Product Code
CSA020BN

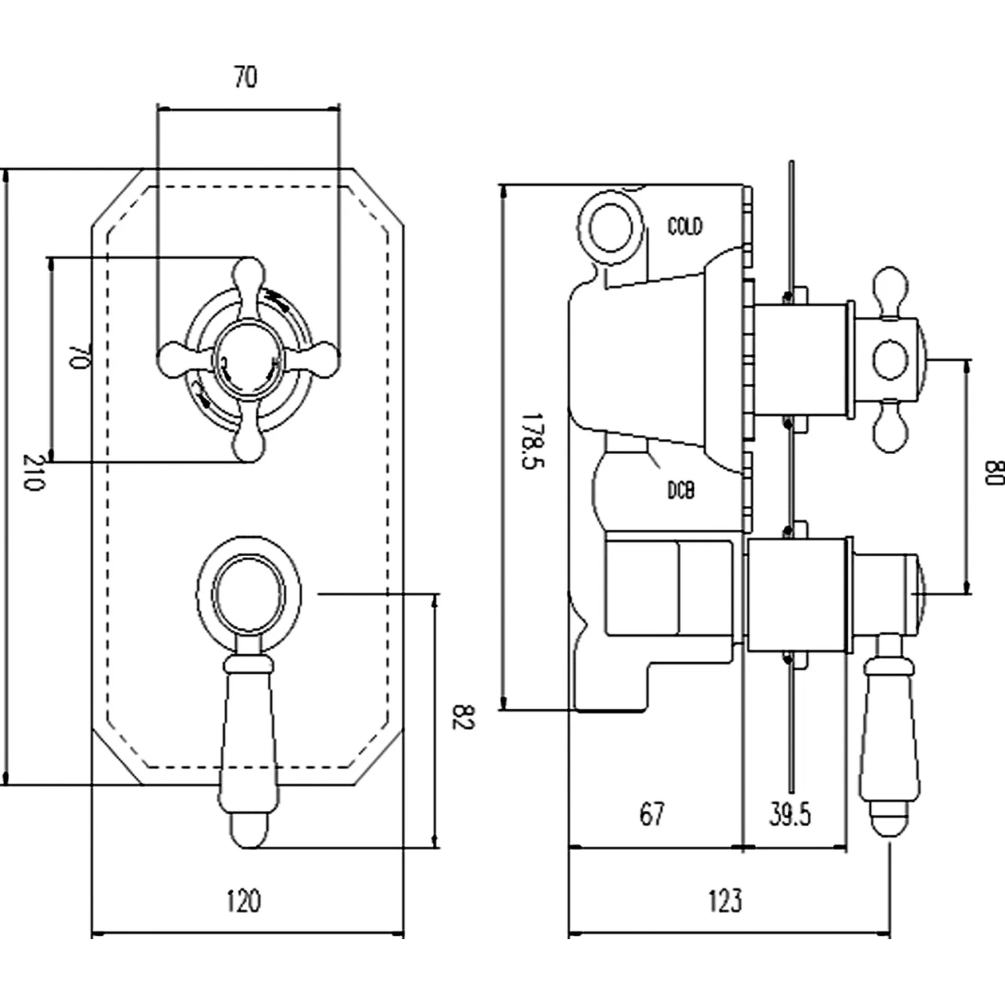

Dimensions (W x H x D)
120mm x 230mm x 135mm
Size may vary depending on options selected
Weight
2.8kg
Colour
Nickel
Material
Brass / ABS
Shape
Octagonal
Mounting Styles
Wall Mounted
Guarantee
1 year
Pressure
0.1 Bar (Low Pressure)
Styles
Traditional / Period Style
Features
Thermostatic
Ranges
Victrion
Awards/Accreditations
TMV2 Approved / WRAS Approved
Finish
Brushed
Orientation
Portrait / Vertical
Thread/Connection Type
G 1/2''
Handle Turn
Quarter Turn
Tap Handle/Indices Type
Crosshead Handle / Lever Handle
Flow Rate
5 l/min
Shower Outlets/Ways
Single Outlet
Shower Handle/Indices Type
Crosshead Handle / Lever Handle
