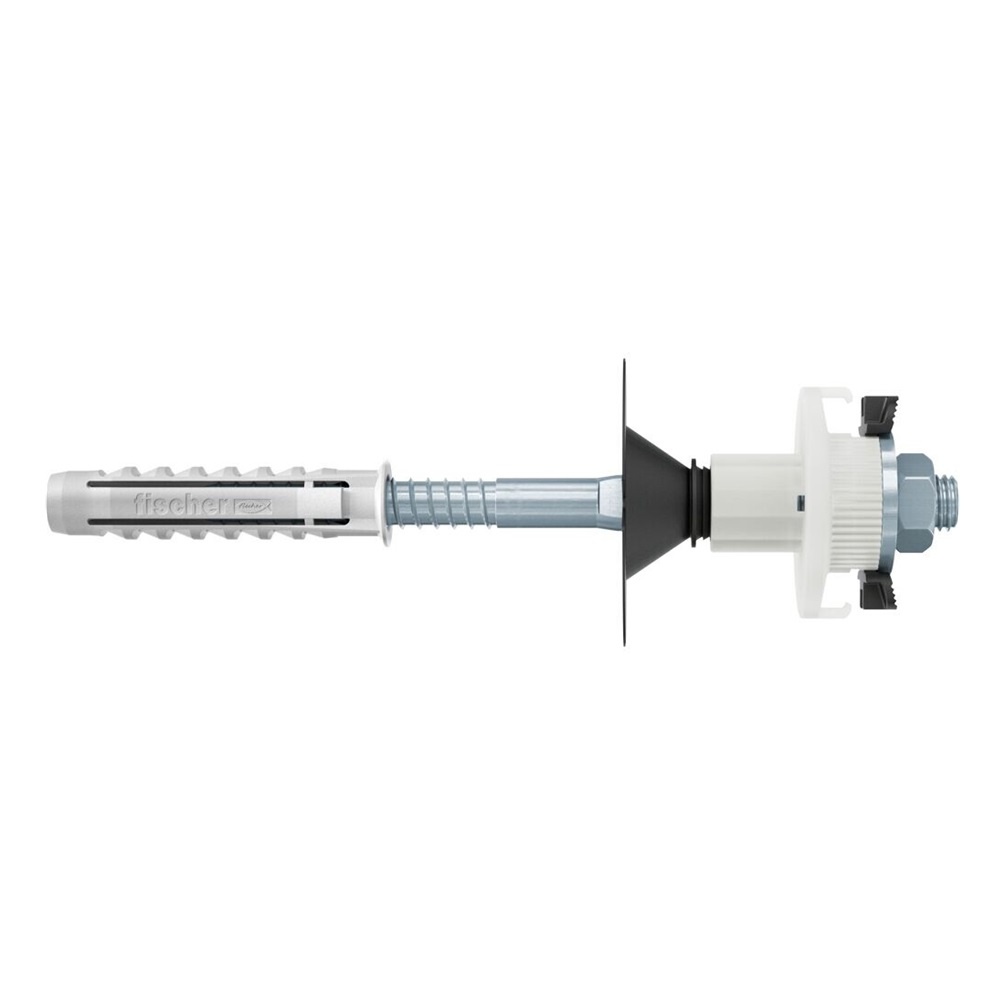

Install any new basin securely on to tiles with this Fischer Washbasin WST Klik 120 Fixing Set provided in a pack of 2.
Suitable for one-man installation, included in this pack are two Fischer SX nylon expansion plugs, which can be used for push-in or push-through installation, an equal number of galvanised steel hanger bolts, as well as a fixing sleeve made of plastic, all of which combine to securely fit a basin on tiled walls permanently whilst being compatible with a range of building materials from concrete to solid bricks.
The bolts include an innovative click function that prevents the basin tilting when being installed, as well as allowing it to altered to suit afterwards. A simple click sound confirms that the set has been mounted correctly. Other advantages include a fixing sleeve that has benefits that help resistance to aging and chemicals, as well as easy disassembly of basins too.
Product Notes
- Can be used in building materials such as concrete, aerated concrete and masonry made of solid or perforated construction material.
- 12mm Drill Diameter
- 80mm minimum hole drill depth
- 60mm Anchor length
- M10 x 127mm Screw Dimensions
- 40mm Maximum Fixture Thickness
- 2 pieces
Installation
- SX plugs are suitable for push-in and push-through installation. When screw is screwed into plug, it expands in four directions, securely fixing into building materials
- Fixing sleeve single parts are fitted in advance in the opening of the ceramic back panel, being plugged into each other.
- Basin is then slid over pre-assembled screws and pushed on the wall by simply pressing the back clips together.
- Once sleeve is engaged, basins no longer rock or move forward allowing for optimal alignment ready for fixing with nuts
- Maximum load capacity is only achieved after minimum screw-in depth is reached. Tiles and plaster considered non-load-bearing substrates.
