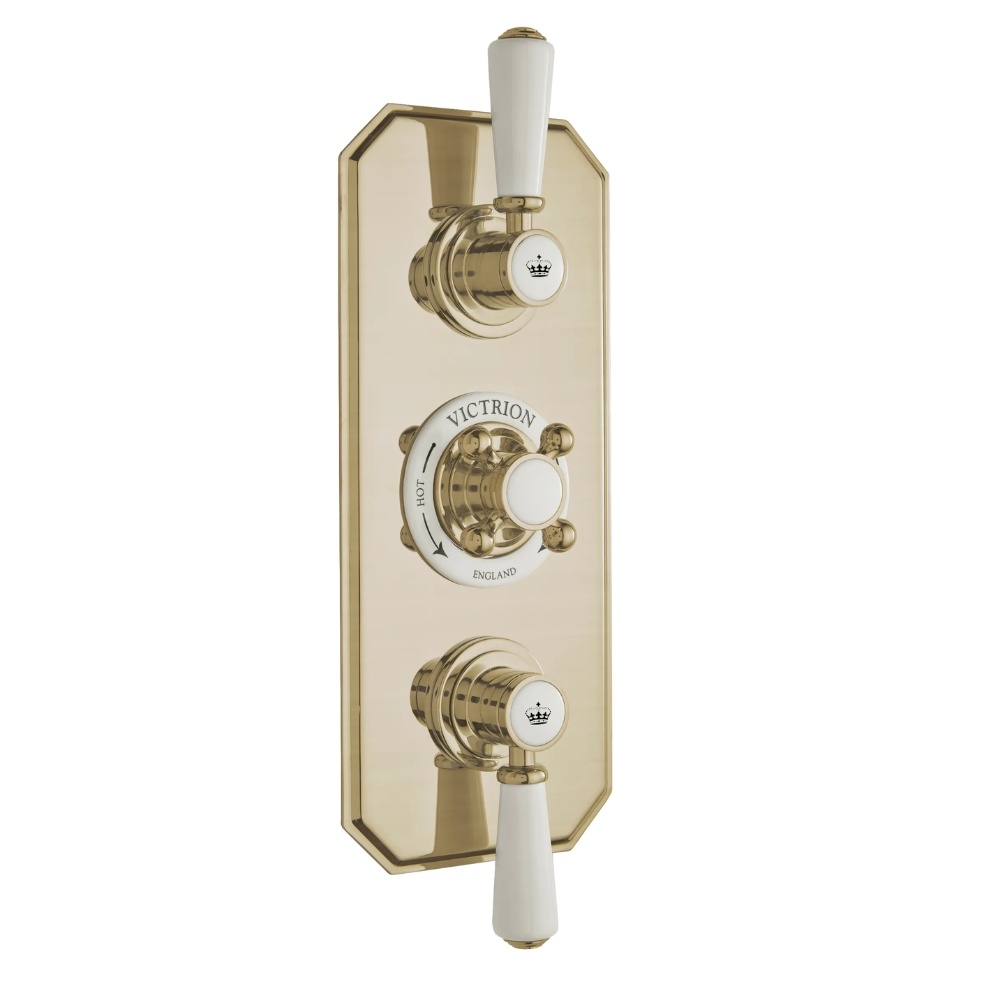

BC Designs Victrion Brushed Gold 2 Outlet 3 Handle Concealed Shower Valve

Reference: 54209
Code: CSA030BG
Select an option: Brushed Gold
RRP £974.00
Save 30%
£681.80 INC VAT
Pay 3 interest-free payments of £227.27 with Klarna. Learn more.
Delivery in 21-28 Working Days Free Delivery Information
Product Information

The elegantly designed BC Designs Victrion Brushed Gold 2 Outlet 3 Handle Concealed Shower Valve is the ideal solution for controlling water in your shower system.

Manufactured from premium brass and finished in a lustrous brushed gold tone, this dual outlet concealed shower valve incorporates three handles, comprising two levers and a central crosshead control.

Turn the levers to divert water flow between your chosen shower outlets (sold separately), such as a handset & hose kit or a wall-mounted shower head, (sold separately - see required products.)

 The central crosshead adjusts water temperature, with this thermostatic valve sustaining a comfortable temperature to help avoid the risk of scalding or cold shock.

The concealed design of this traditional shower valve presents only the trimset while the rest is hidden behind the wall for a cleaner and more minimalist appearance.


Please Note:

  • This thermostatic shower valve contains a patented cartridge which is fully reversible, meaning if the hot and cold supplies are the wrong way round then it can be removed, turned 180° and fitted, without re-plumbing.
  • In the event of hot or cold water failure, the valve will shut down the water supply.
Product Name
BC Designs Victrion Brushed Gold 2 Outlet 3 Handle Concealed Shower Valve
Reference
54209
Product Code
CSA030BG

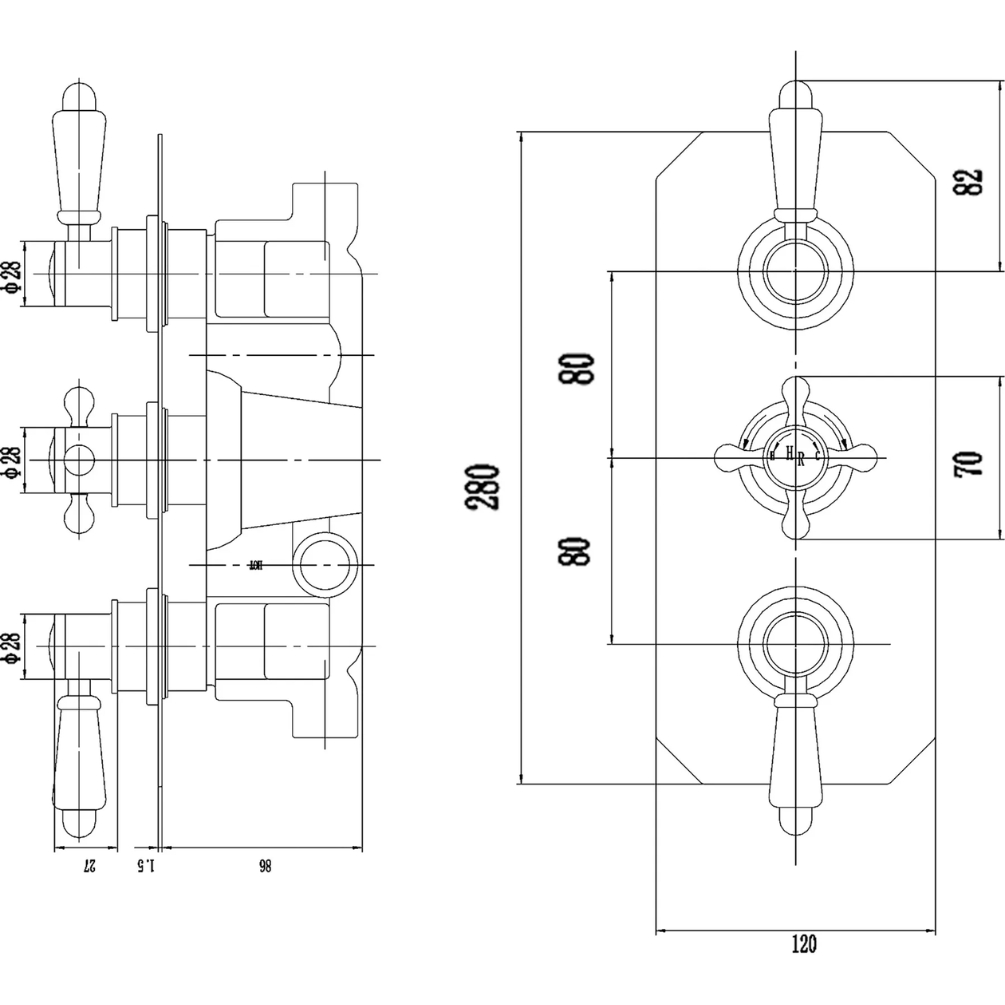

Dimensions (W x H x D)
120mm x 280mm x 135mm
Size may vary depending on options selected
Weight
3kg
Colour
Gold
Material
Brass / ABS
Shape
Octagonal
Mounting Styles
Wall Mounted
Guarantee
1 year
Pressure
0.1 Bar (Low Pressure)
Styles
Period Style / Traditional
Features
Thermostatic
Ranges
Victrion
Awards/Accreditations
TMV2 Approved / WRAS Approved
Finish
Brushed
Orientation
Portrait / Vertical
Thread/Connection Type
G 3/4''
Handle Turn
Quarter Turn
Flow Rate
5 l/min
Shower Installation
Concealed Wall Shower
Shower Outlets/Ways
Dual Outlet/Two Way
Shower Handle/Indices Type
Crosshead Handle / Lever Handle
