Roca Duplo 1140mm Compact Wall Hung WC Frame with Dual Flush Cistern

Reference: 49693
Code: A8900800A0
Select an option:
RRP £356.77
Save 30%
£249.74 INC VAT
Out of Stock
Est in stock: 08/01/2026
Pay 3 interest-free payments of £83.25 with Klarna. Learn more.
Delivery in 3-7 Working Days From £6.95 Information
Product Information

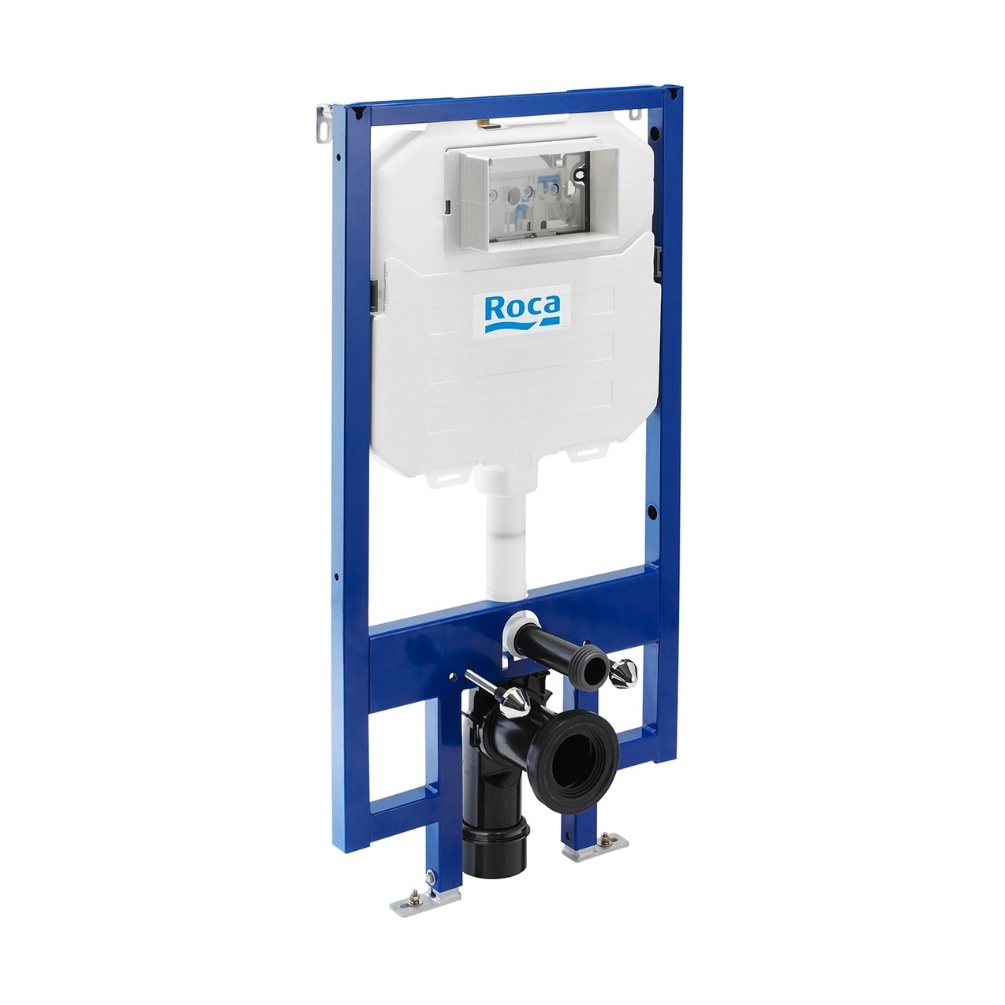

Introducing the Roca Duplo 1140mm Compact Wall Hung WC Frame with Dual Flush Cistern. If you’re facing the challenge of limited space but still want a stylish and efficient wall-mounted, this is it.

This stunning wall-hung toilet frame and cistern meld innovative features into a sleek and economically smart design. The standout component - a dual flush cistern with an ultra-slim depth of just 80mm! This cistern lets you choose your perfect flush volume with options preset at 3/6 litres or customise it to 2/4 litres or 3/4.5 litres. Not only does this promote impressive water savings, but it also maintains top-notch performance. Plus, the flush valve promises durability, lasts over 200,000 cycles, and includes insulation to minimise noise and condensation.

Constructed with robust stainless steel, this frame stands tall at 1140mm and measures a sturdy 580mm in width. With height-adjustable feet, it ensures a flawless fit for solid and stud wall installations, providing unbeatable support for your toilet.


  • Compatible with Roca toilet flush plates.
  • Includes a 90mm - 110mm waste adapter for floor exit and 90mm horizontal waste.
  • Includes a fixing kit for swift and simple installation.
Product Name
Roca Duplo 1140mm Compact Wall Hung WC Frame with Dual Flush Cistern
Reference
49693
Product Code
A8900800A0

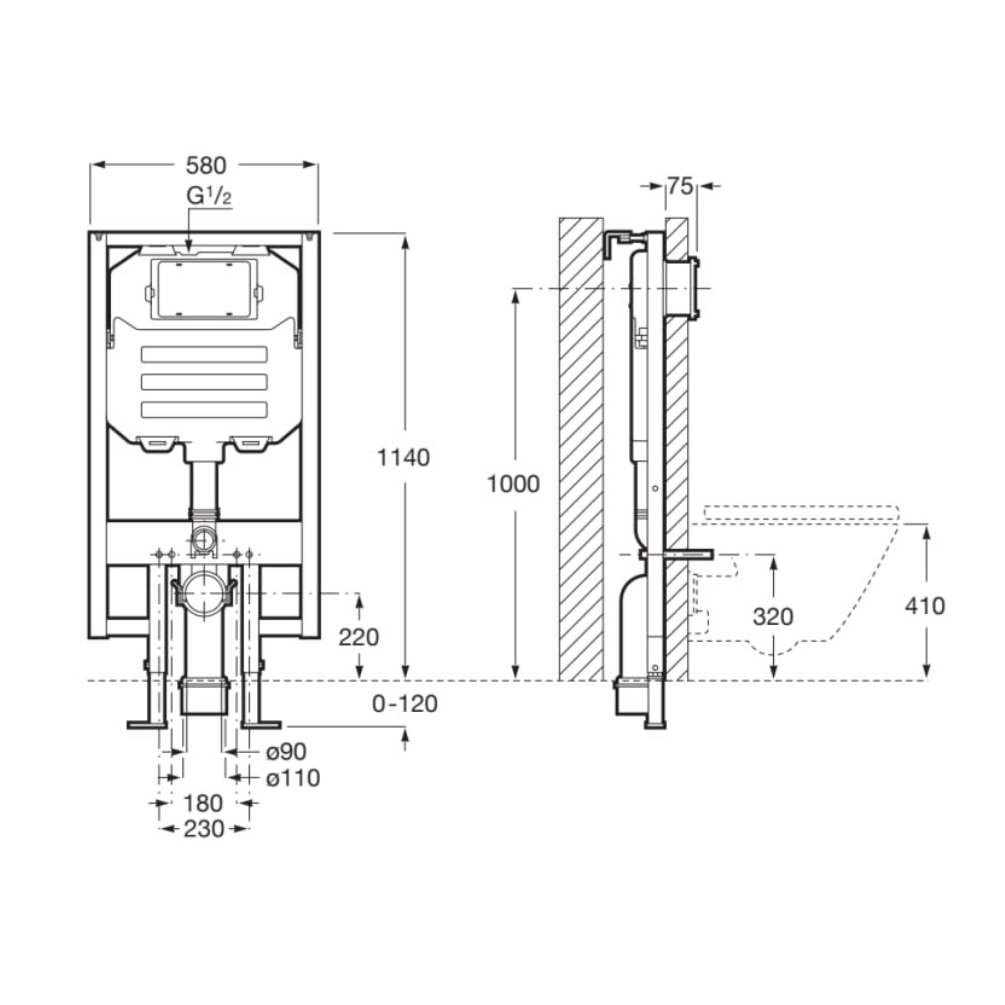

Dimensions (W x H x D)
580mm x 1140mm x 90mm
Size may vary depending on options selected
Colour
White / Blue
Material
Stainless Steel
Shape
Rectangular
Mounting Styles
Wall Mounted
Guarantee
5 years
Styles
Modern / Contemporary
Features
Water Saving / Adjustable Height / With Installation Kit / Hidden Fixings/Brackets / With Fixings/Fastening Set
Ranges
Duplo
Awards/Accreditations
WRAS Approved
Orientation
Portrait / Vertical
Thread/Connection Type
G 1/2''
Flush Type
Dual Flush
Outlet Type
Horizontal Outlet
Flush Volume
3L/4.5L
Actuation Type
Front Actuation
Inlet Location
Top Inlet / Back Inlet
Extra Guarantee Information:
Cistern is covered by a 5 year guarantee only, while the frame is guaranteed for 10 years.
