Product Information
Create a spacious, beautifully presented enclosure with this elegant shower door.
Designed for Crosswater's premium Optix 10 collection, this pivot door includes an inline panel to provide a roomier showering experience. The door and panel are built from 10mm toughened glass with a special easy-clean coating, while the frame is 304-grade stainless steel with a glittering brushed brass finish.
This reversible shower door can be purchased in a wide range of sizes to fit any bathroom space. It can be installed in either a recess or a corner setting, with the latter made possible with the addition of an optional side panel. It's also compatible with both shower trays and tiled wet rooms.
Notes:
- Stainless steel double handle
- Breakwater bar
- Magnetic seal
- With Crosswater Clear protective glass treatment
- Outward-opening pivot hinges
- 25mm width adjustment for easy fitting
- Reversible door for left or right-handed entry
- Clear PVC door seals
- Suitable for shower trays and wetrooms - requires minimum ledge of 60mm

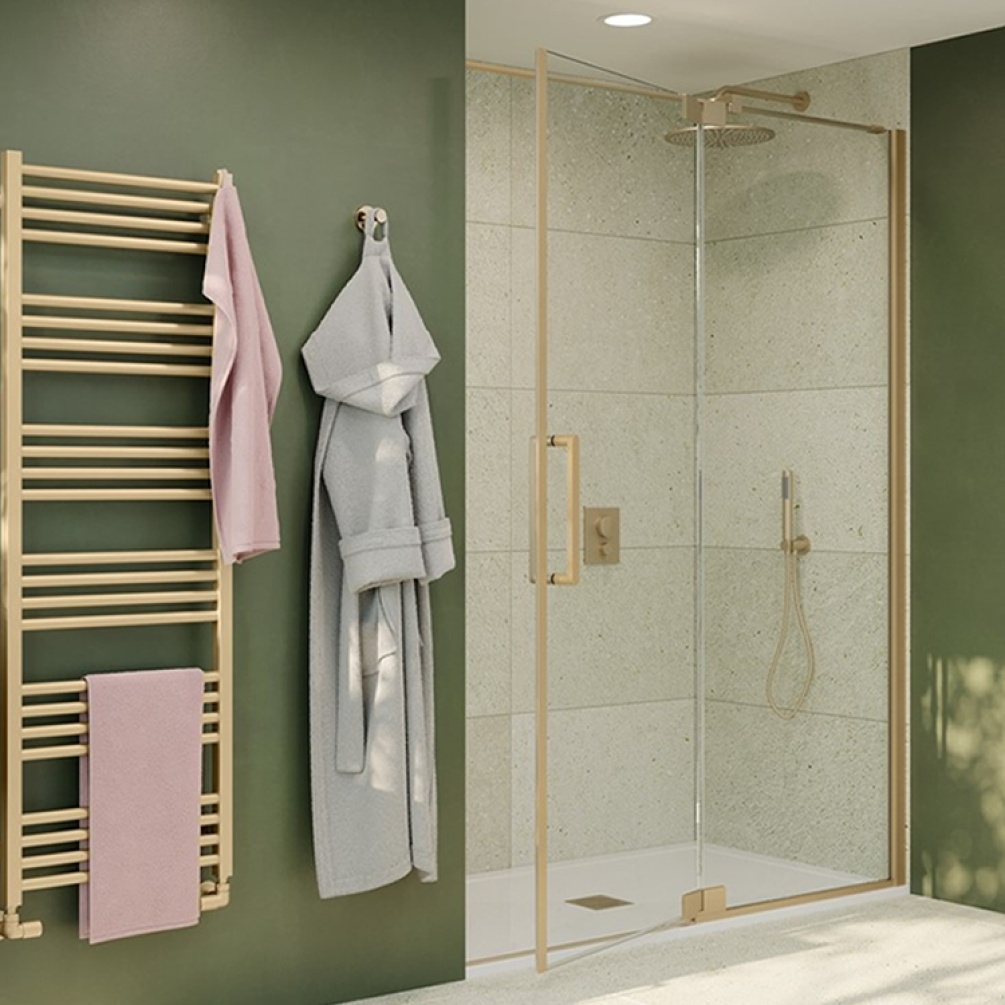

- First image shows recessed installation, second image shows side panel installation
- Optional knurled handle available - see Required Products
- 2-year guarantee extendable to 25 years upon registration with Crosswater/Bathroom Brands- must be registered within required timeframe after purchase & installation
- Seals, hinges & rollers guaranteed for 2 years only
Door Adjustments
Width (mm) | Door Opening (mm) | Adjustment (mm) | Adjustment With Side Panel (mm) |
|---|---|---|---|
800 | 500 | 760 - 785 | 770 - 795 |
1000 | 600 | 960 - 985 | 970 - 995 |
1200 | 650 | 1160 - 1185 | 1170 - 1195 |
1400 | 650 | 1360 - 1385 | 1370 - 1395 |
Side Panel Adjustments
Width (mm) | Adjustment (mm) |
|---|---|
800 | 775 - 795 |
900 | 875 - 895 |
Size may vary depending on options selected
