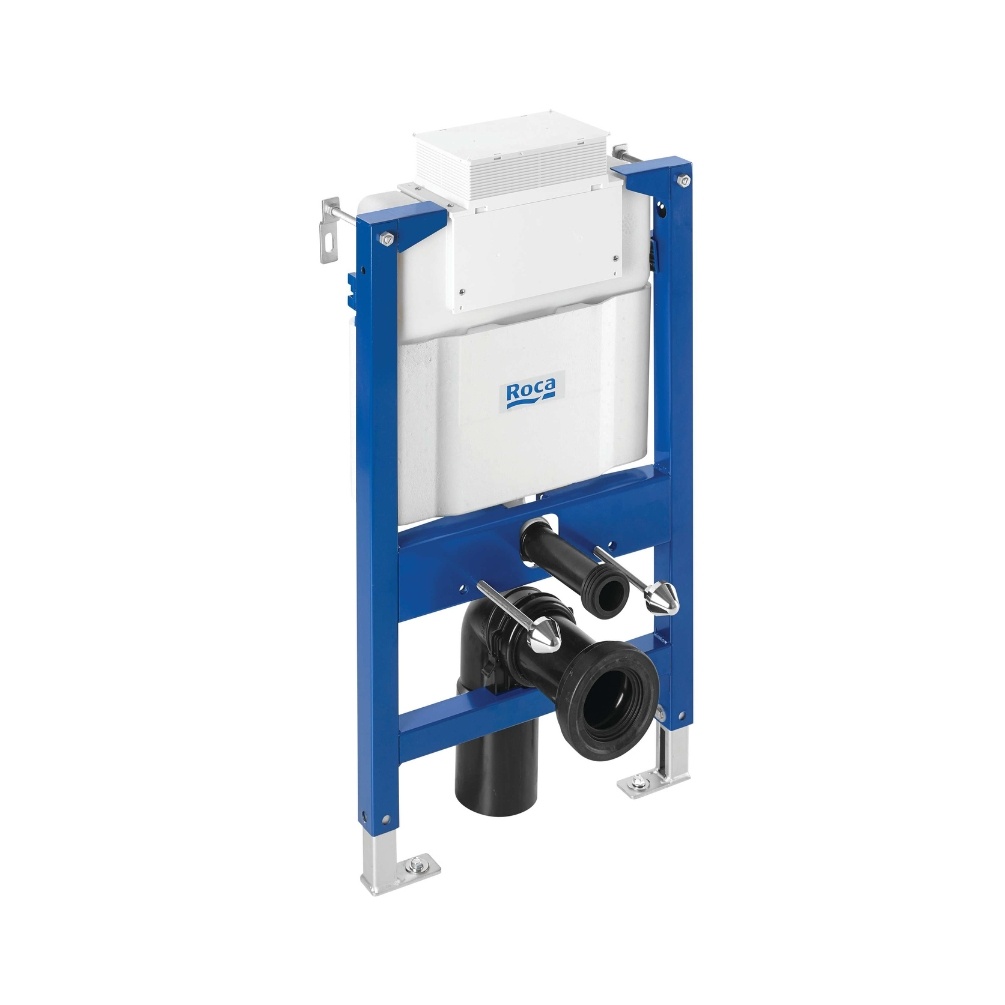

Roca Duplo One 820mm Under Window Wall Hung WC Frame with Dual Flush Cistern

The Roca Duplo One 820mm Under Window Wall Hung WC Frame with Dual Flush Cistern provides the easiest and most flexible installation option for wall hung toilets in space-restricted areas.

Designed to withstand loads of up to 400kg and suitable for solid or stud wall installations, this wall-hung toilet frame & cistern delivers exceptional performance while maximising space efficiency in tight installations. Measuring 820mm in height, this model features height-adjustable feet that extend up to 200mm with an integrated brake system and rotatable outlet pipe angle for precise under-window installation.

The integrated dual flush cistern provides two flush volumes to prioritise water efficiency, featuring a maximum flush setting of 6/3L, and with high-quality insulating materials, offers complete protection against condensation.

Please Note: This system is compatible with Roca's Duplo One PL1, PL2, PL3, PL7 and PL10 toilet flush plates (sold separately). See the required products section for a brief sample of available colours.

• Minimum Fixation Depth: 155mm.
• 1/2” water supply.
• 90-110mm waste adaptor for floor exit included.
• WC fixing points of 180mm or 230mm.
• Horizontal waste included.
• Flow pressure ranges from 0.1 to 10 bar.
• Water Inlet Position: Lateral.
• DN90 (90 mm) elbow connection.
