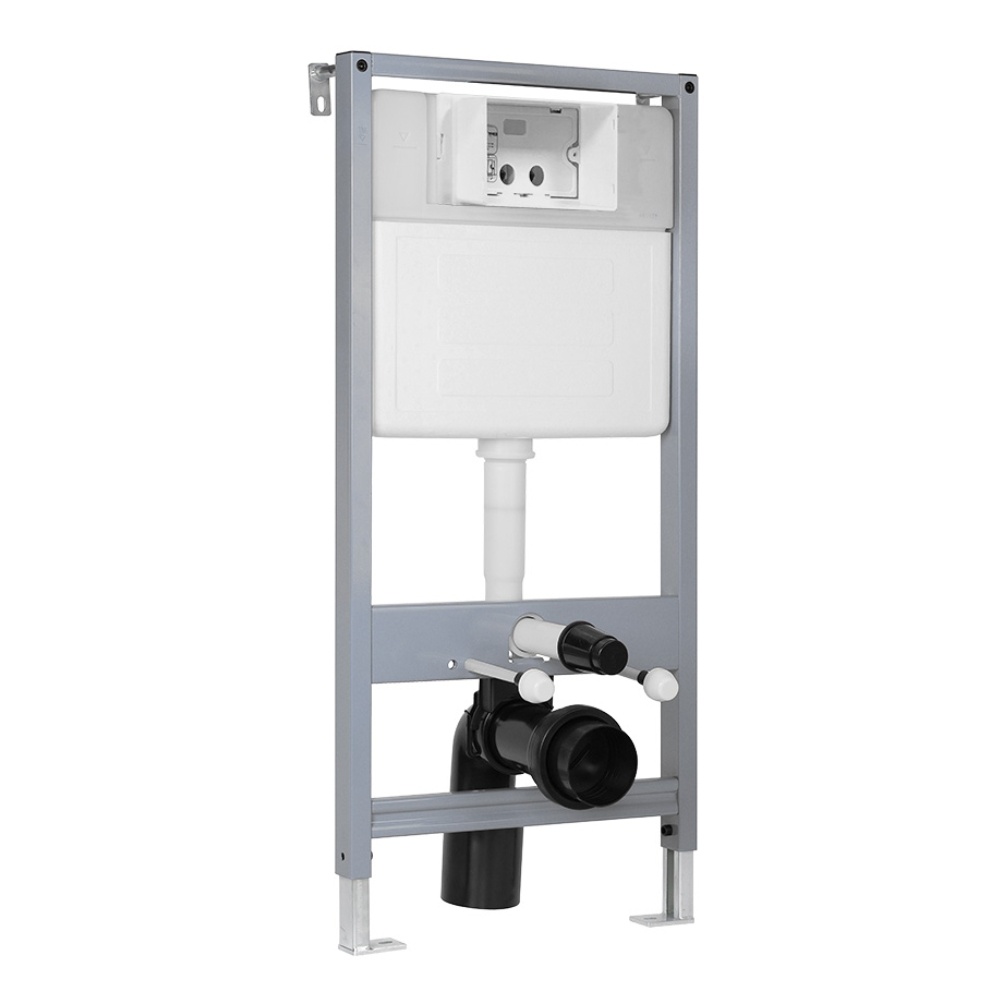

Imex Wall Hung 1070mm Concealed Cistern & Adjustable WC Frame

Hidden cleverly behind a wall, the Imex Wall Hung 1070mm Concealed Cistern & Adjustable WC Frame is the ideal solution for installing a wall-hung toilet or back to wall toilet.

Preassembled for ease of installation, this steel wall-hung WC frame and cistern slots into the wall behind the pan, supporting up to 400 kg in weight. It is adjustable in projection to accommodate either horizontal or vertical waste pipes and is fully insulated to protect against condensation.

The front-actuated holder allows you to add a dual-flush button plate (sold separately), which controls the flow of water after toilet use and provides a choice between a half flush, using 2.6–4 litres of water, or a full flush of 4–6 litres operated by two separate buttons.

The frame and concealed cistern come equipped with two fixings to attach to the waste pipe, along with a choice of a straight or angled connector to attach to the back of the wall-hung toilet pan, completing the installation.

Once the frame and cistern are concealed behind the wall, only the toilet pan and flush plate remain visible, creating a tidy, uncluttered look for your bathroom.

Please note:

• This wall hung frame and cistern are compatible with Imex wall hung WCs and dual button flush plates only.
• This product can be fitted into gaps of above 180mm.
• Suitable for Imex wall hung and back to wall toilets only.
• The frame is adjustable in height from 1070mm to 1270mm and has an adjustable projection between 150 - 300mm.
