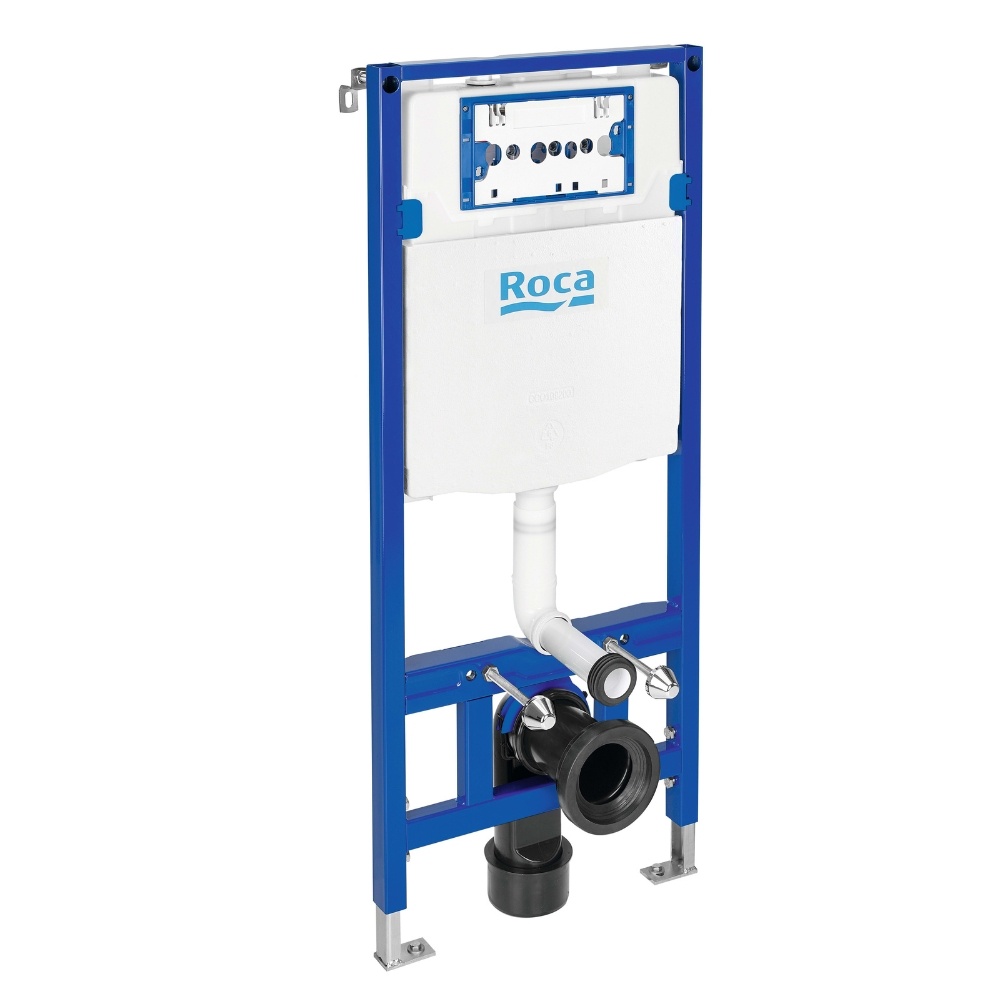

Roca Duplo One 1120mm Wall Hung WC Frame with Dual Flush Cistern

Get your wall hung toilet up and running in no time with the Roca Duplo One 1120mm Wall Hung WC Frame with Dual Flush Cistern.

This wall-hung toilet frame & cistern combine sought-after features into a dependable and cost-effective solution. The robust frame can support weights of up to 400kg, is suitable for installation in both solid and stud walls, measures a standard height of 1120mm, allows for height adjustments of up to 200mm, and can be locked with a braking system for accurate placement during installation.

Meanwhile, the dual flush cistern offers multiple flush volume options: a standard 3/6 litres, which can be modified to either 4/2L or 4.5/3L, providing flexibility for conserving water. Additionally, constructed from high-quality insulating materials, this cistern ensures complete protection against condensation.

Please Note: This system is compatible with Roca's Duplo One PL1, PL2, PL3, PL7, PL10, as well as the EP3 electronic toilet flush plates (sold separately). See the required products section for a brief sample of available colours.

• Minimum Fixation Depth: 107mm.
• 1/2” water supply.
• WC fixing point of 180mm or 230mm
• 90-110mm waste adaptor for floor exit included.
• Water Inlet Position: Top
• Horizontal waste included.
• Flow pressure ranges from 0.1 to 10 bar.
• DN100 (110 mm), DN90 (90 mm) elbow connection.
