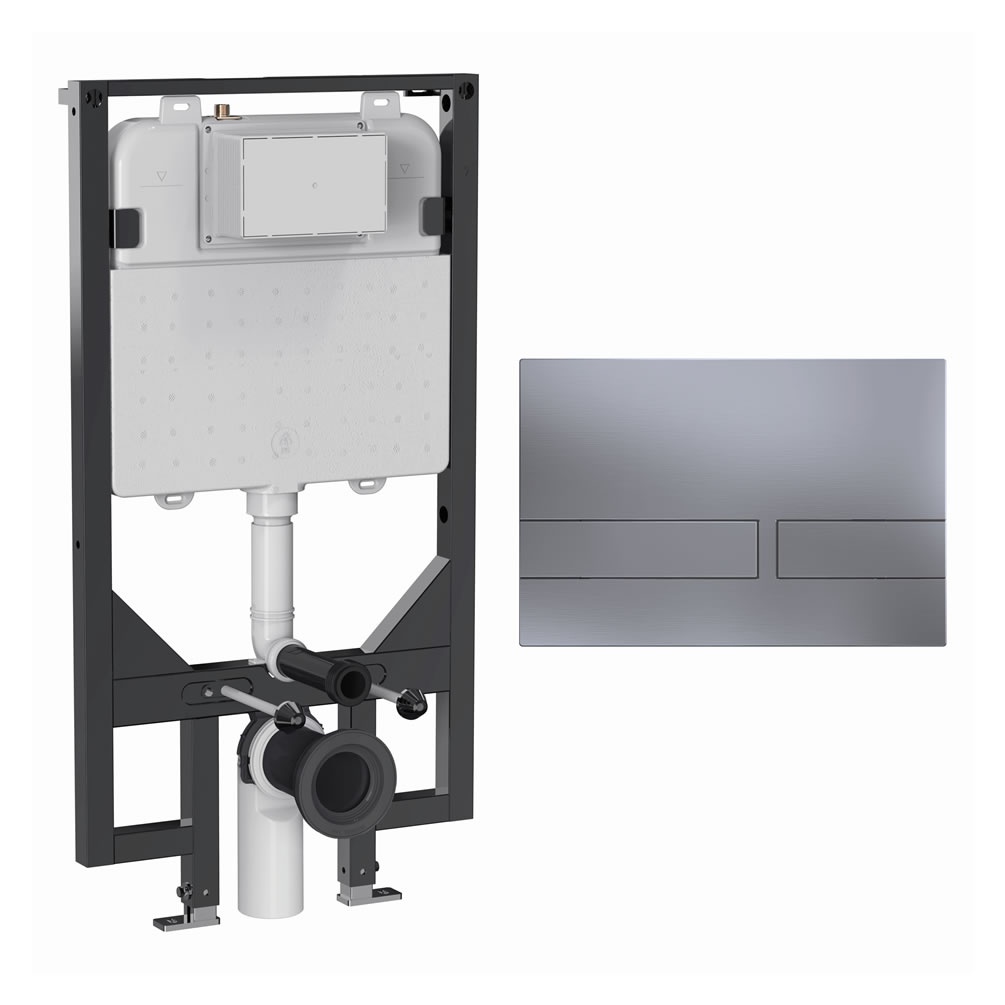

Crosswater 1140mm Ultra-Slim Wall-Hung Cistern Frame & Venue Brushed Nickel Dual Flush Plate

A wall-mounted toilet pan is the quintessential contemporary minimalist bathroom statement, but such fixtures are not always easy to set up. Make sure you've got the right infrastructure in place with this 1140mm wall-hung cistern frame set, exclusive to Crosswater.

Serving as both structural support and dual-flush cistern, this steel frame fastens your toilet pan securely to your bathroom wall. The frame itself is completely concealed, tucked away within a wall cavity with just the Venue two-button flush plate left visible. Built from sturdy ABS and finished in tasteful brushed nickel, this plate makes it easy to activate the cistern's dual flush function. Simply press the large button for a full flush or the small one for a half flush. The default water volume is 6 litres for a full flush and 4 litres for a half flush, with an alternate 4.5/3 litre configuration available through manual adjustment.

This cistern frame features a slimline shape with height-adjustable feet, slotting nicely into most wall cavities.

Notes:

• For use with Crosswater wall-hung toilet pans
• Supports up to 400kg load
• Front flush: 110-170mm
• UKCA certified
• 2-year guarantee extendable to 5 years upon registration with Crosswater/Bathroom Brands
